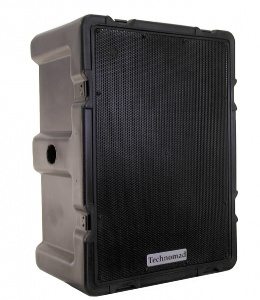

Specifications
| Size: | 20.8″ x 15.5″ x10.1″ |
| Weight: | 53 lbs |
| Freq. Response: | 55 Hz – 18 KHz (+/- 2 dB) |
| Sensitivity: | 99.6 dB SPL (1W/1M, swept sine) |
| Continuous Power: | 480 Watts (based on EIA test 426B) |
| Max. Continuous SPL | 126.4 dB SPL |
| Dispersion: | 120 x 120 |
| Connector: | 2 x Speak-On NL4MP |
| Impedance: | 8 Ohms (nominal) |
| HF Driver: | 1″ horn-loaded compression driver |
| LF Driver: | 12″ custom cone driver (coaxial) |
| Mounting Points: | 8 x1/4-20 inserts (4 on top end, 4 on right side) 4 x 5/16-18 centered on back for bracket mounting. |
| Enclosure: | Tour Package (gasketed lid, handles for transport) |
| Options: | » 14 Available Colors (black standard) » Wallmount | Pole Mount Bracket » Yoke Mount » Monitor Tilt Kit(for floor / ‘wedge’ monitor operation) » 300-Watt internal 70-volt transformer |
| Review | » ProAudio Magazine Review of the Noho and Soho |

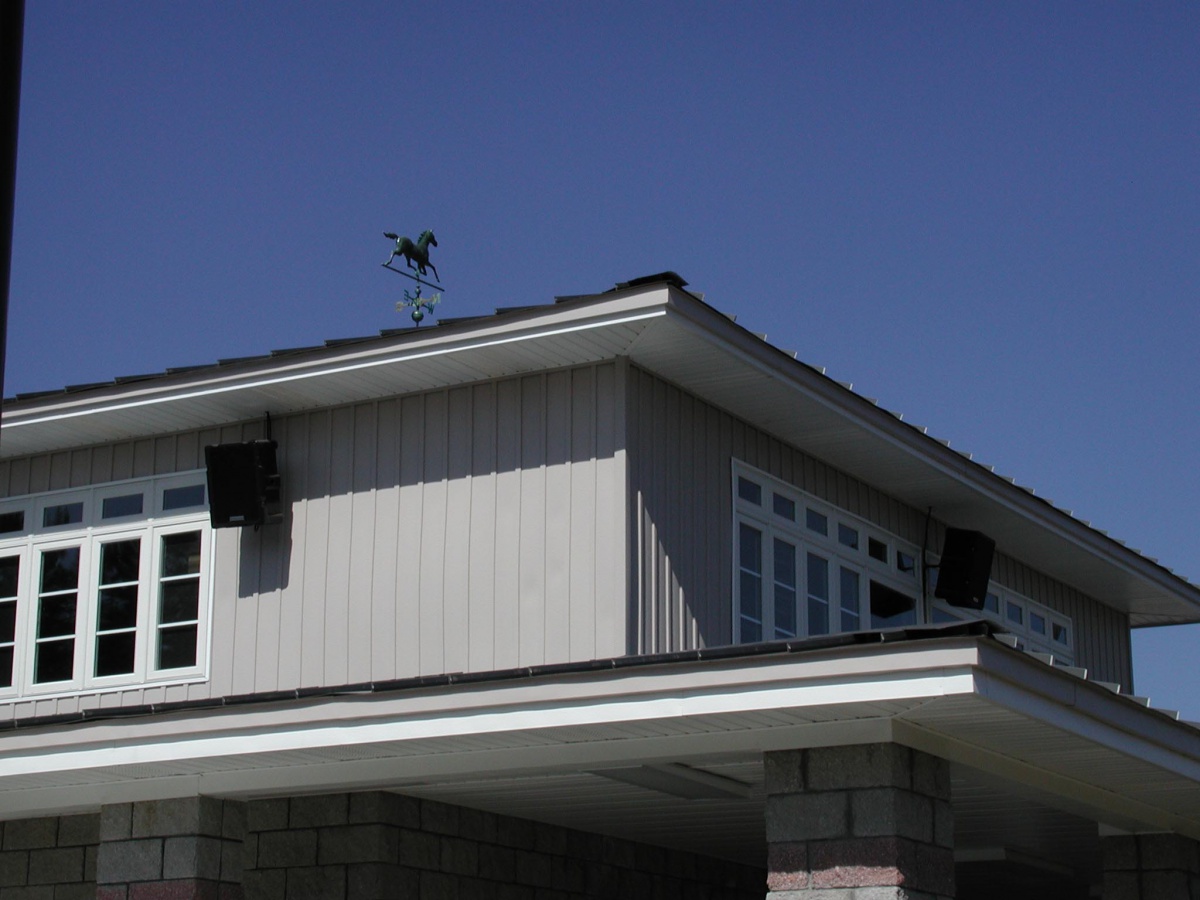

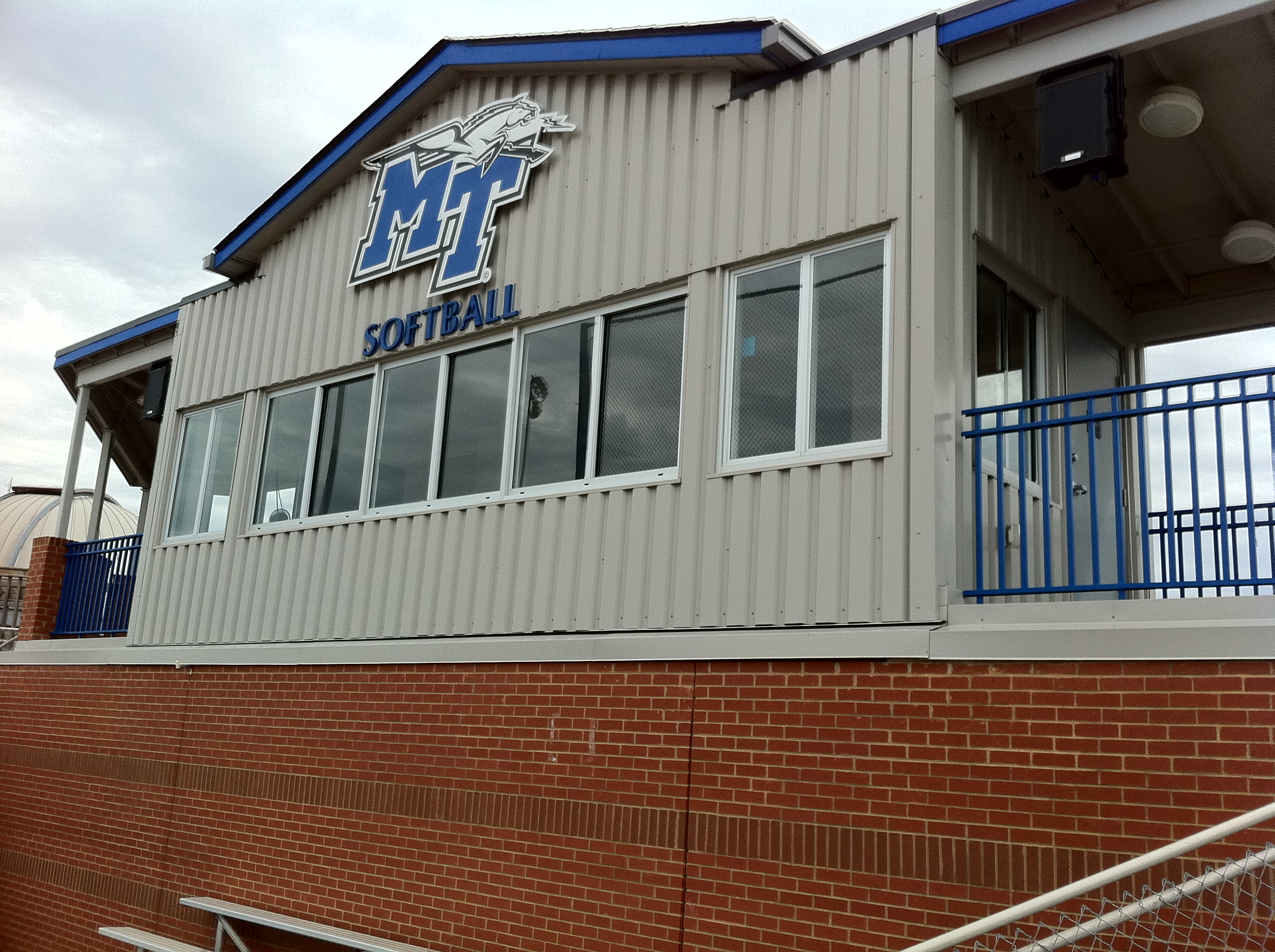

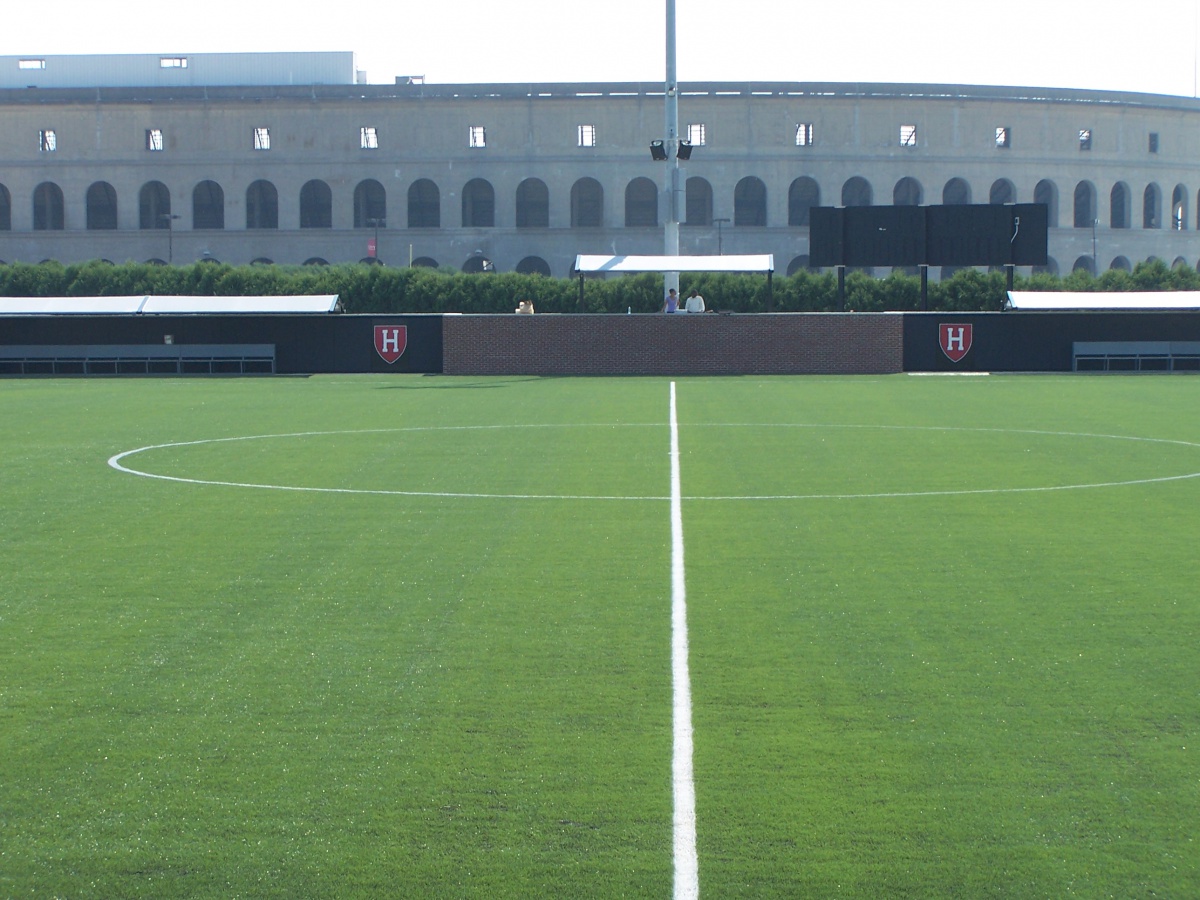

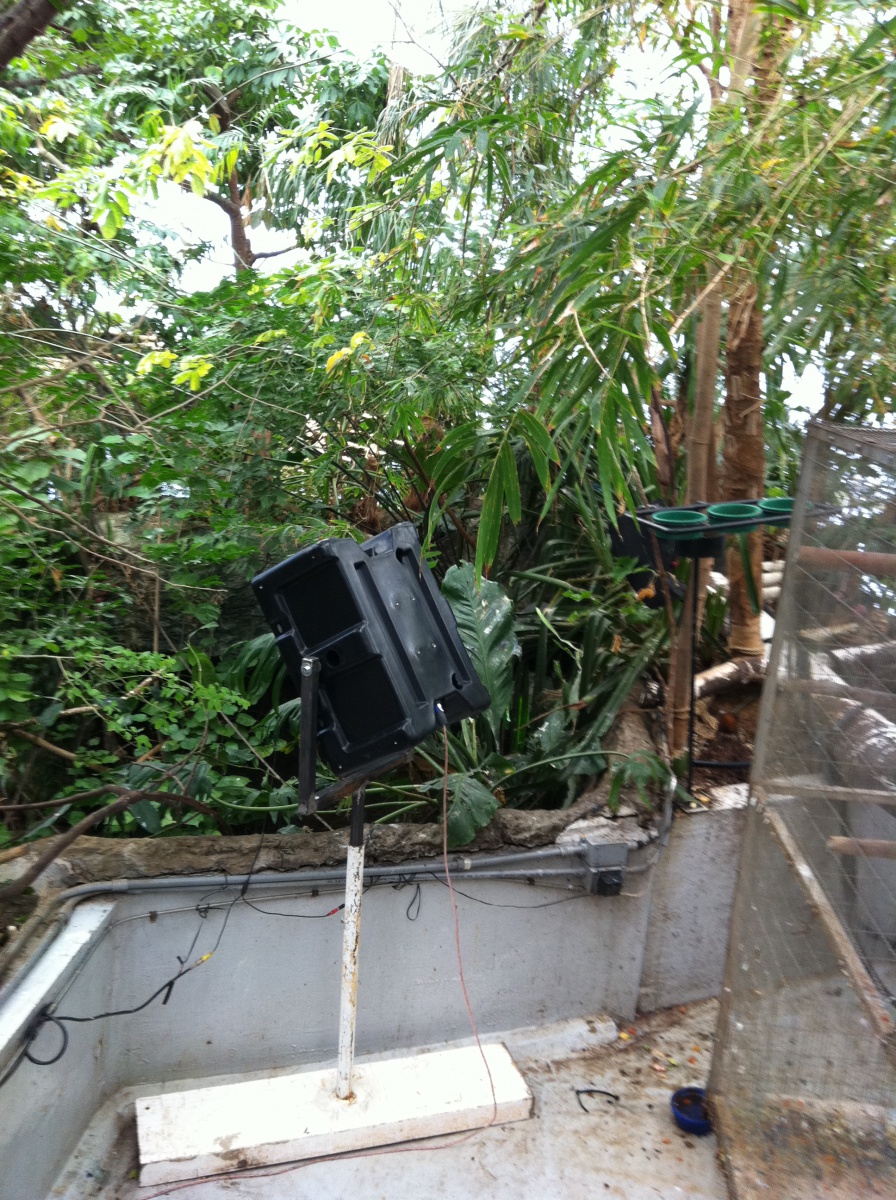

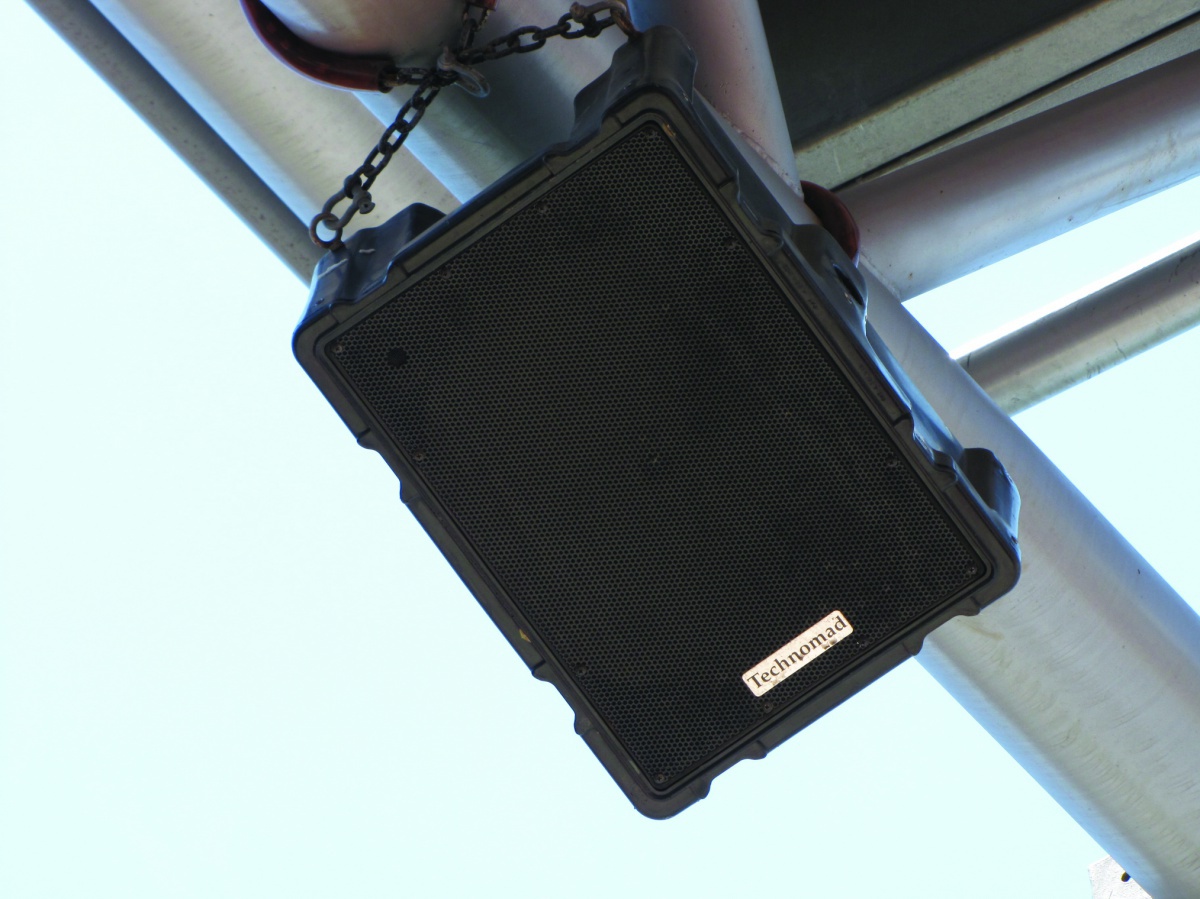

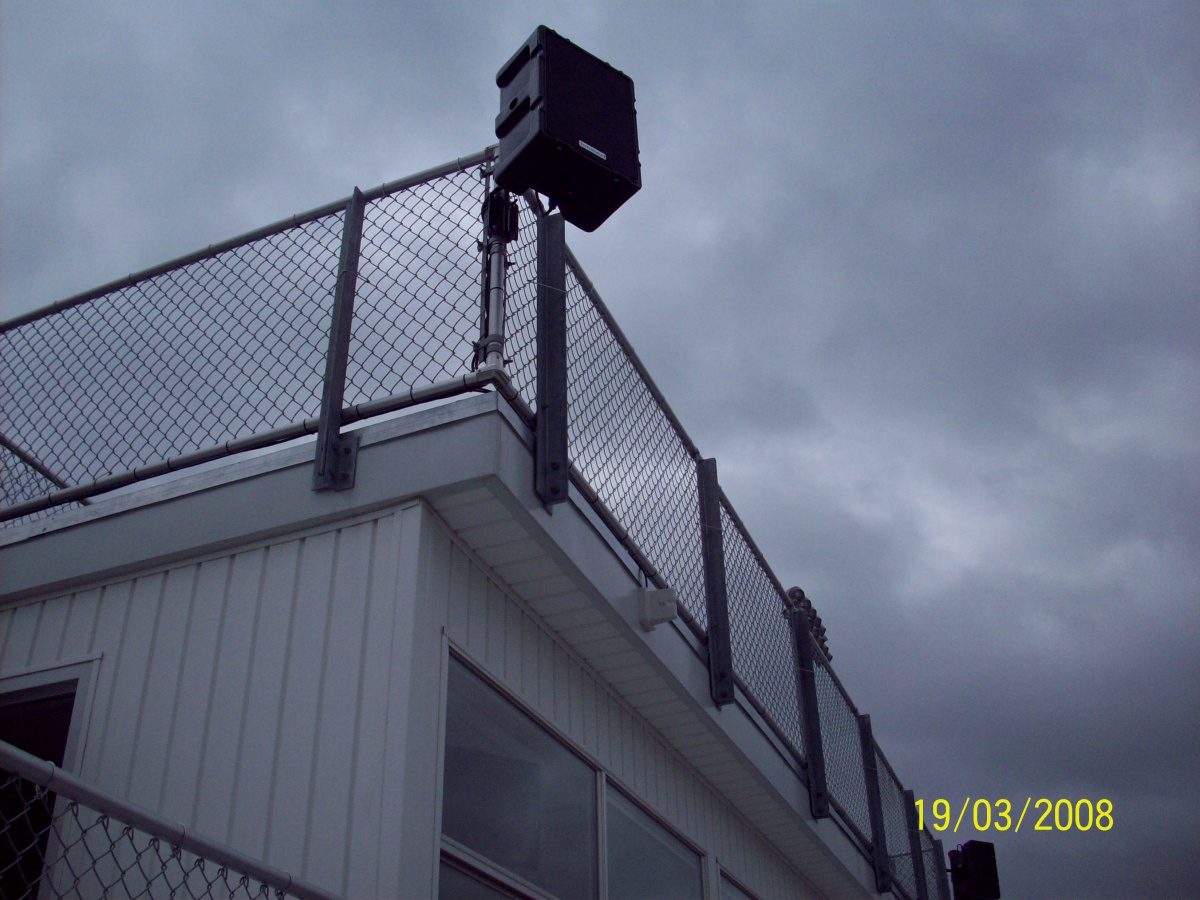

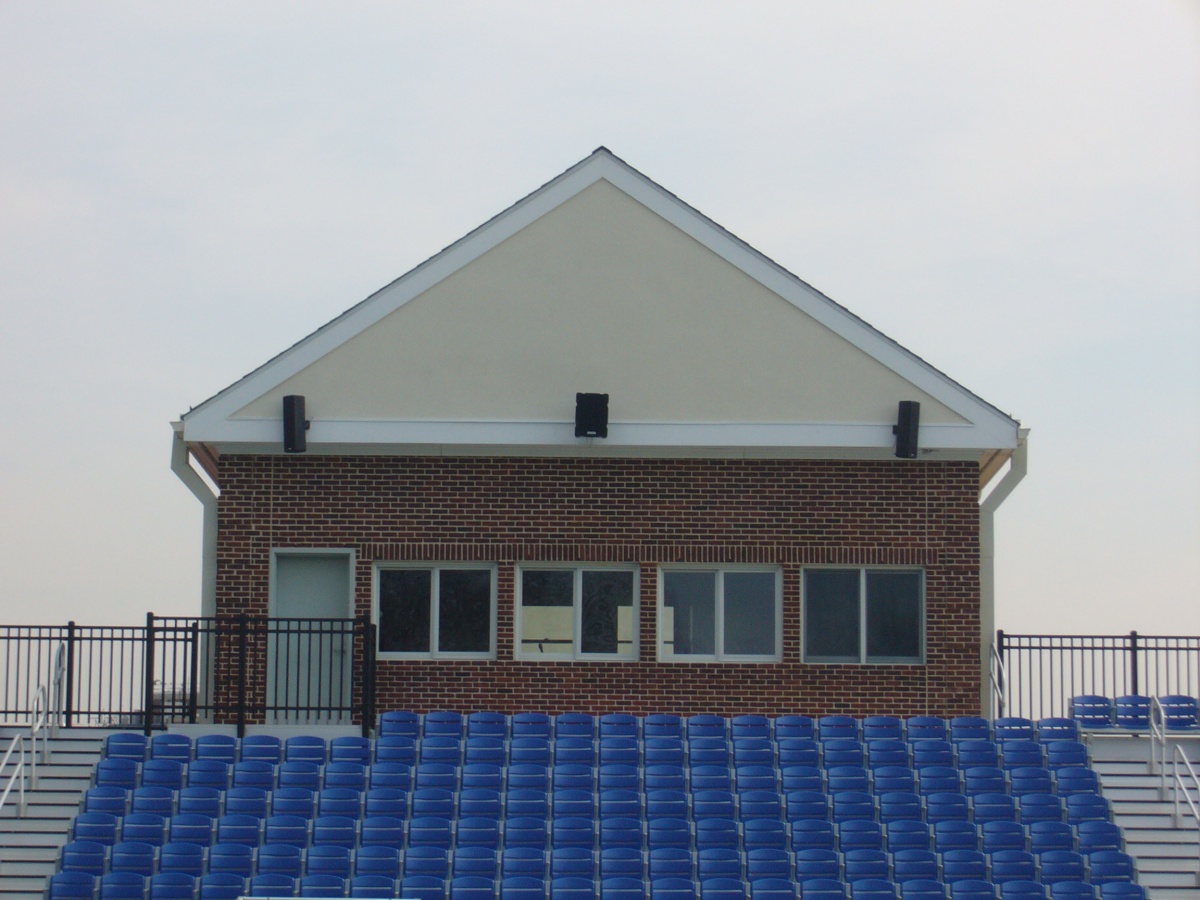

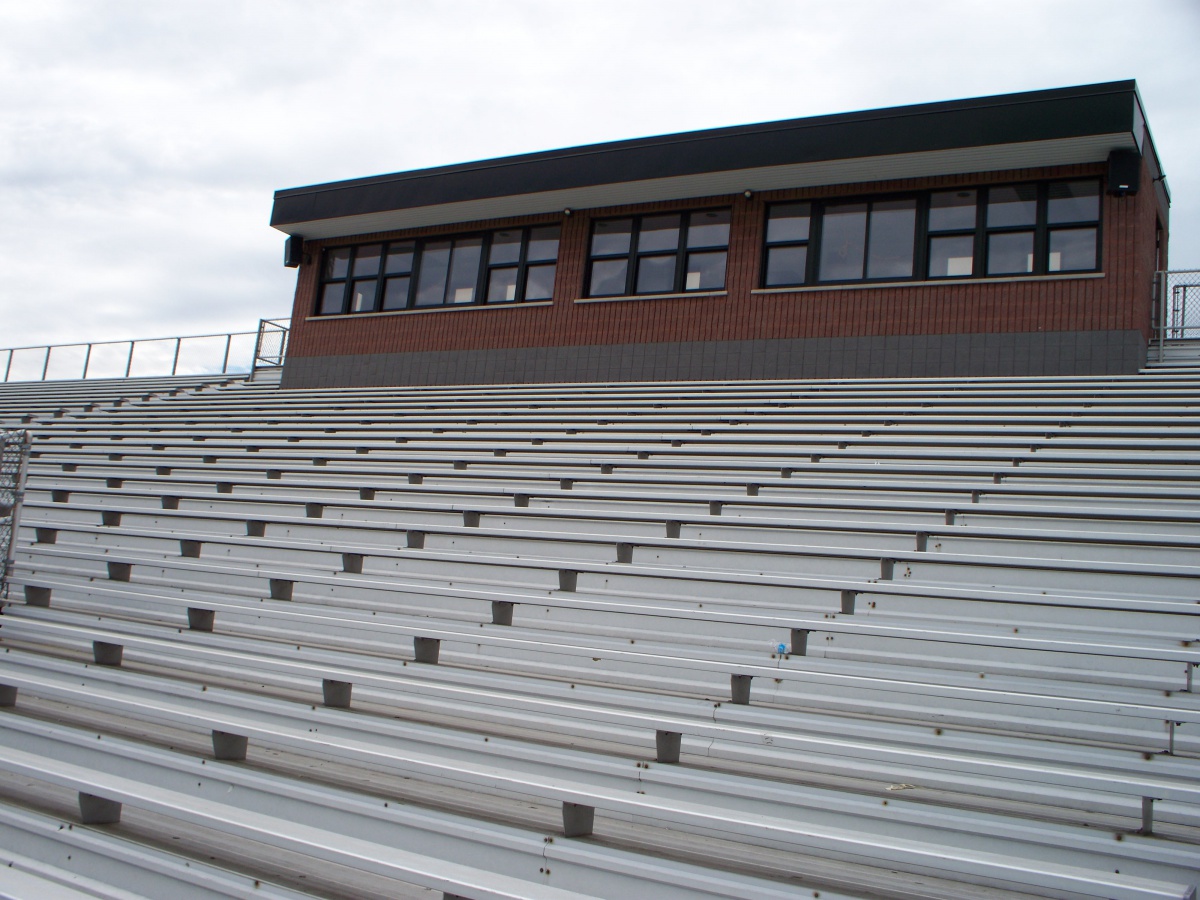

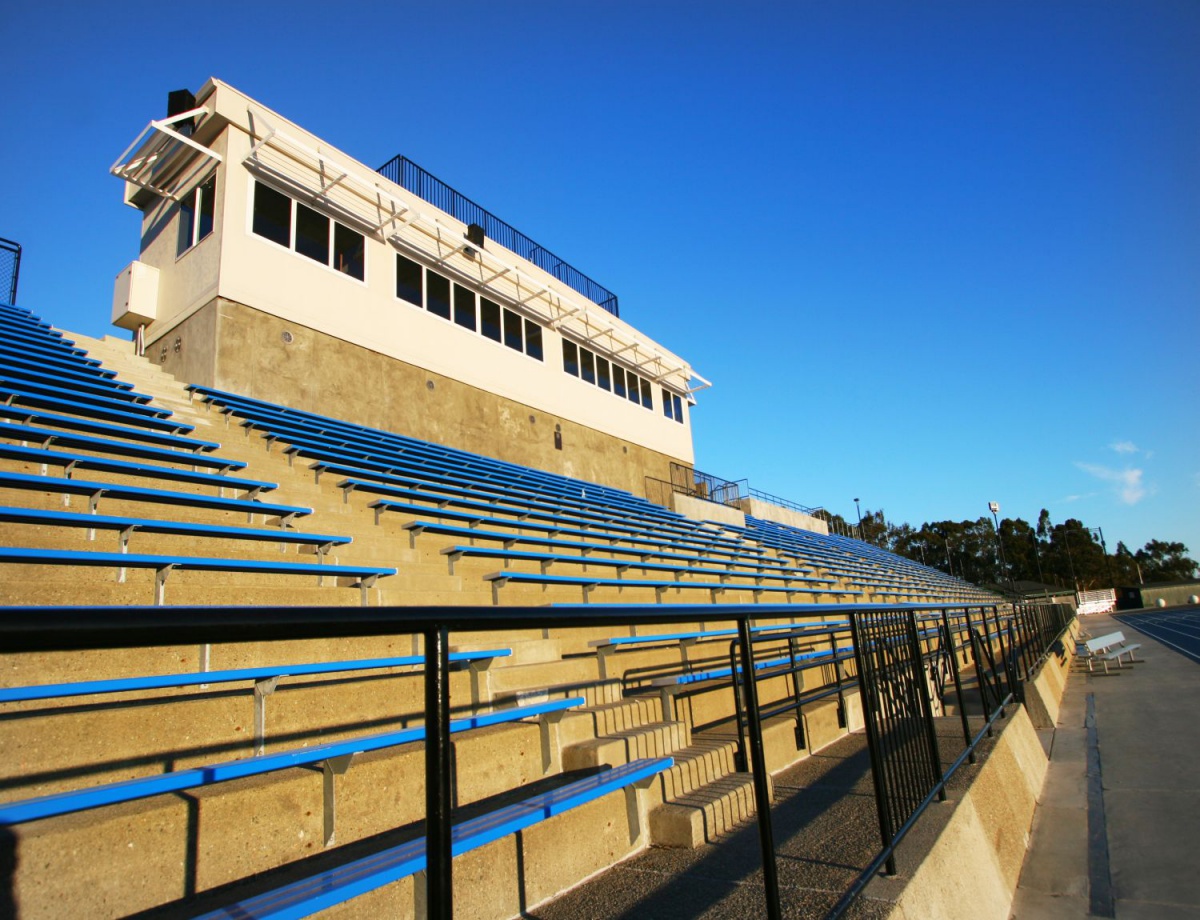

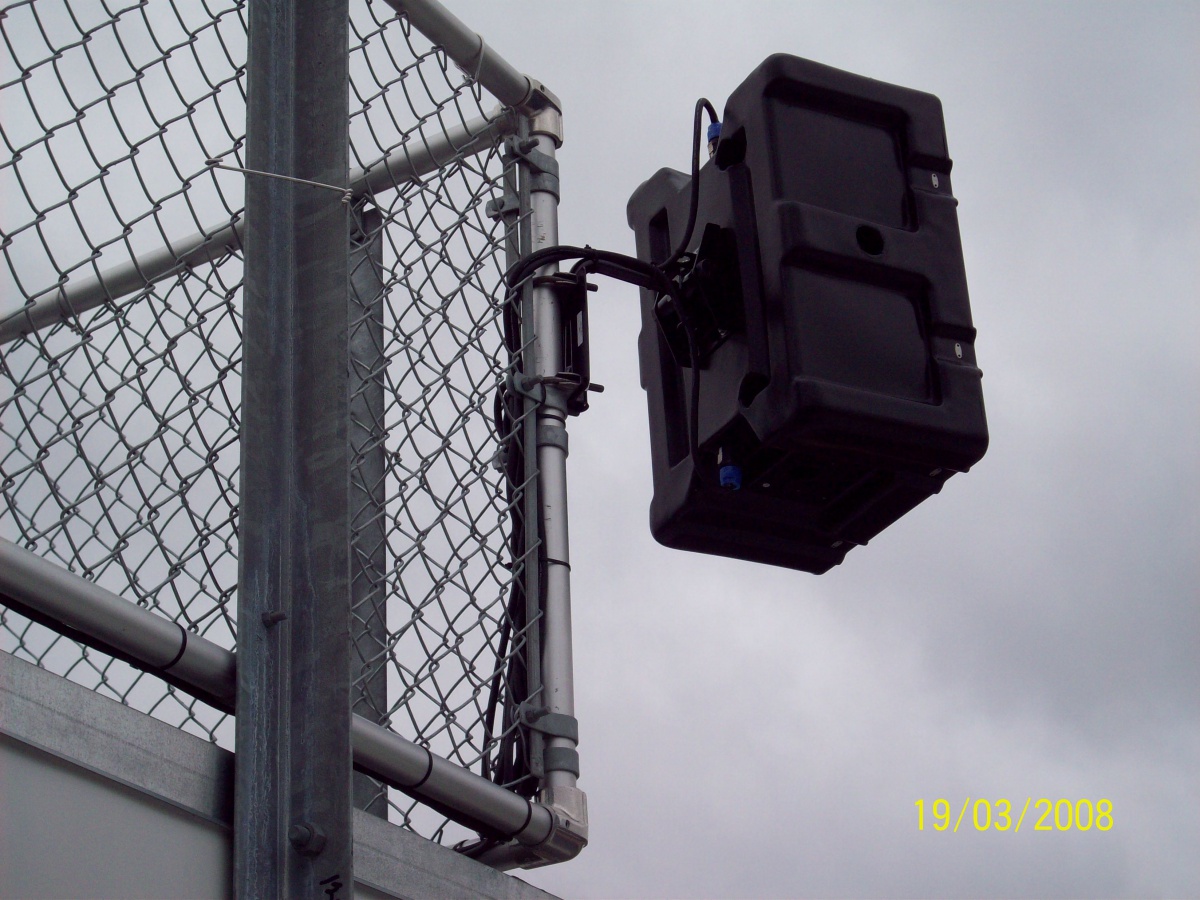

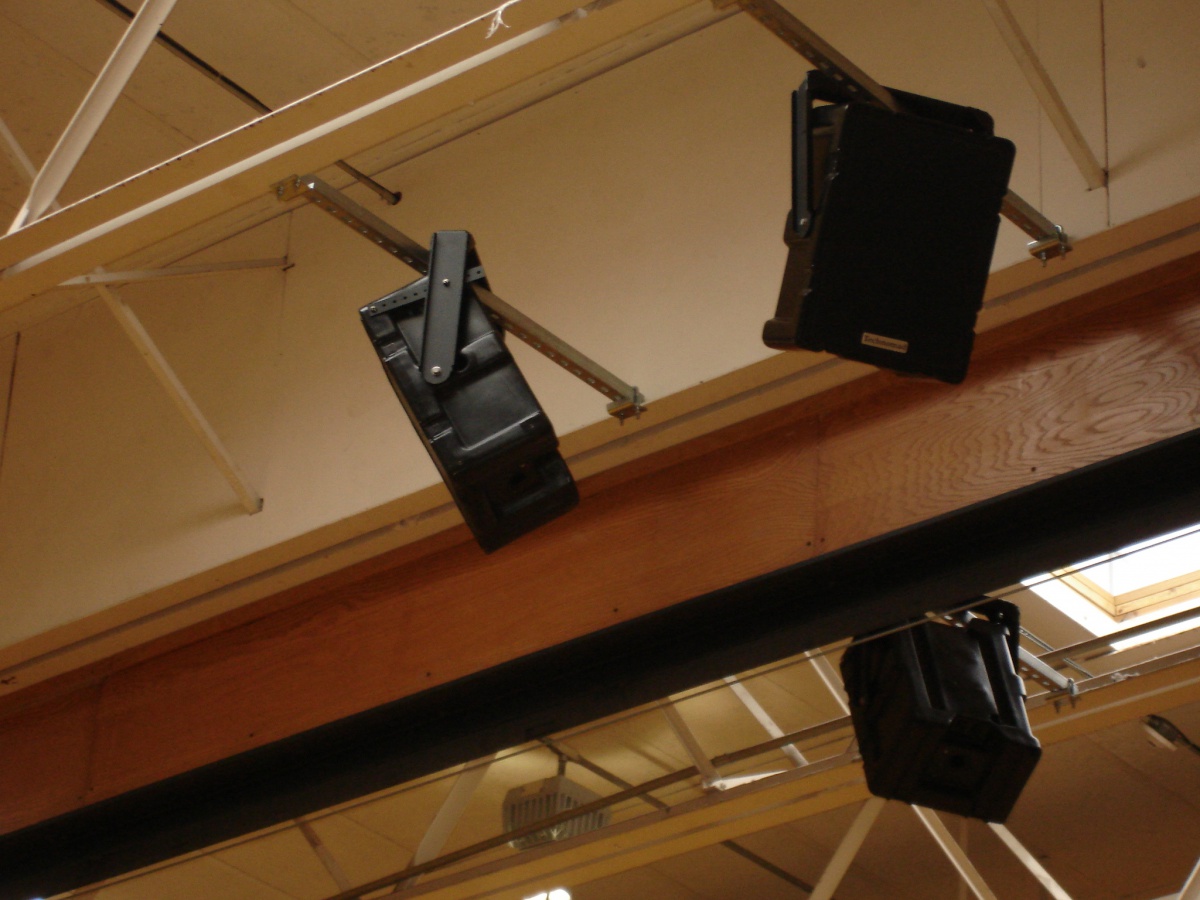

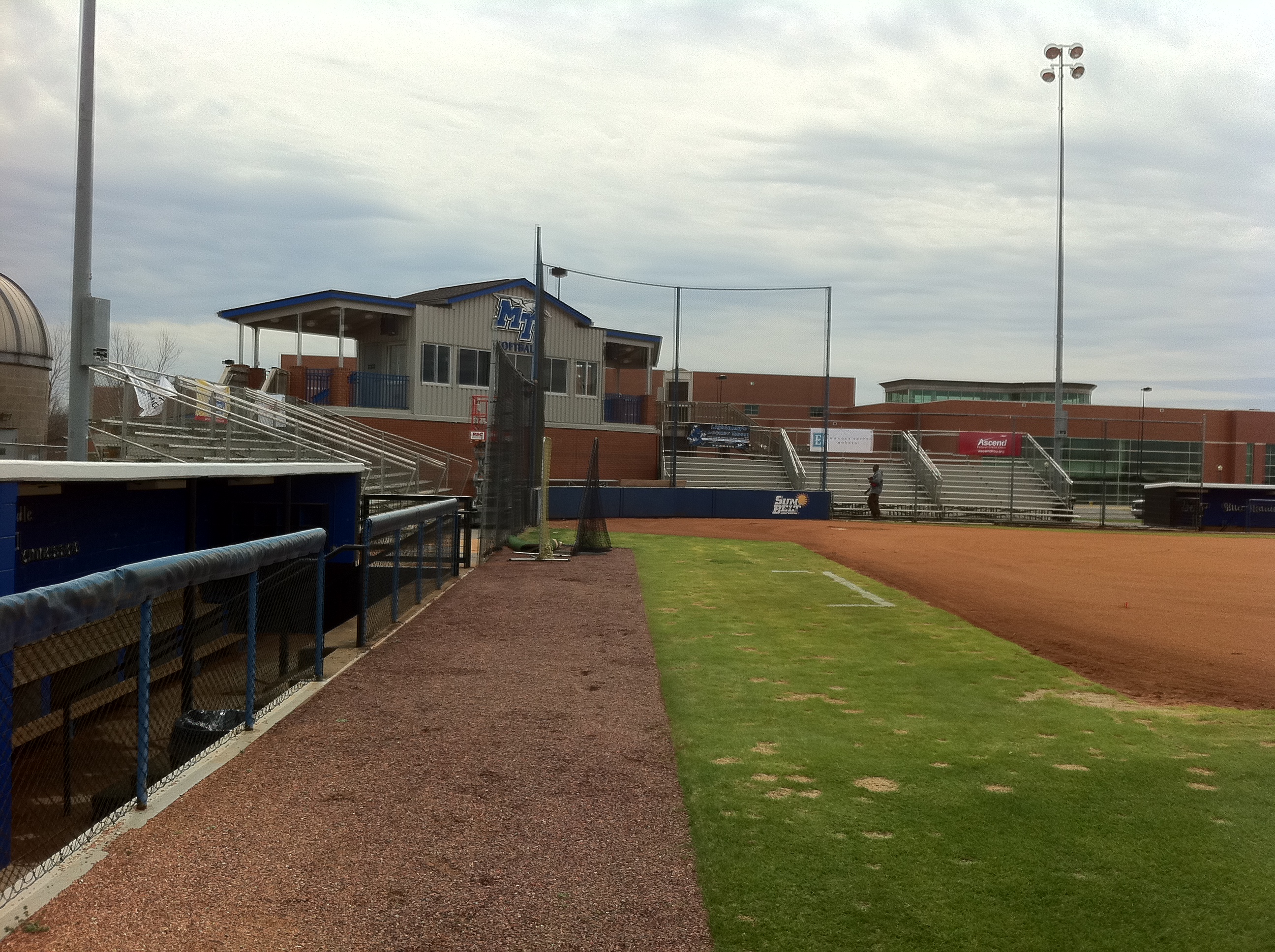

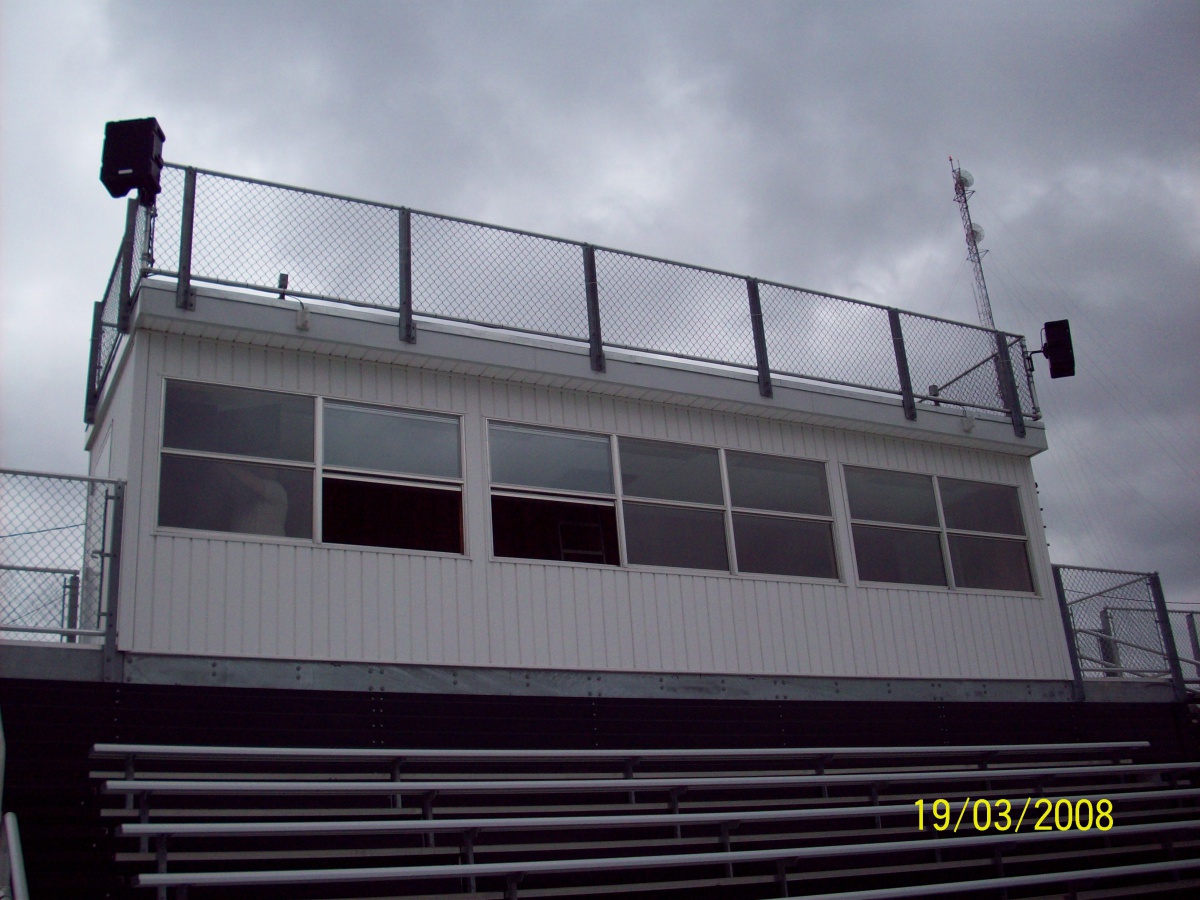

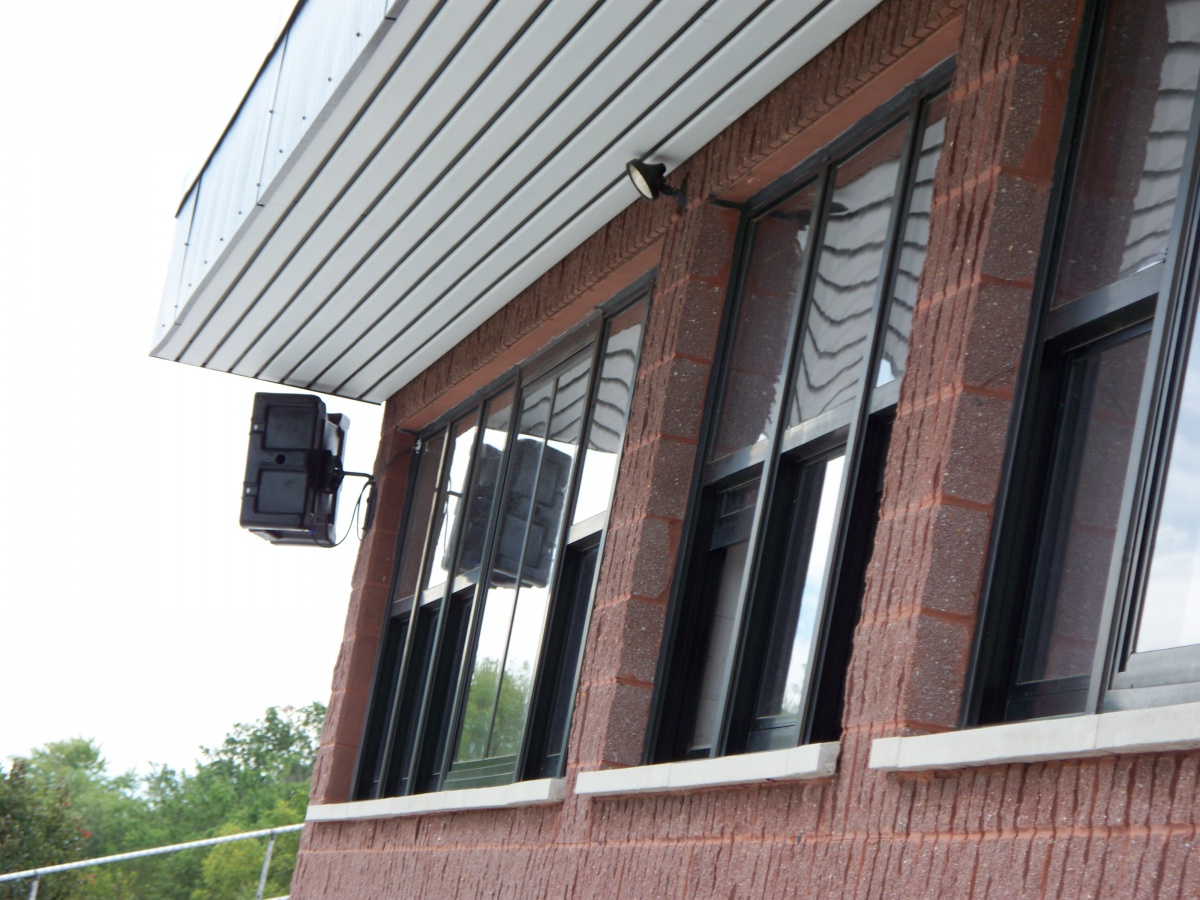

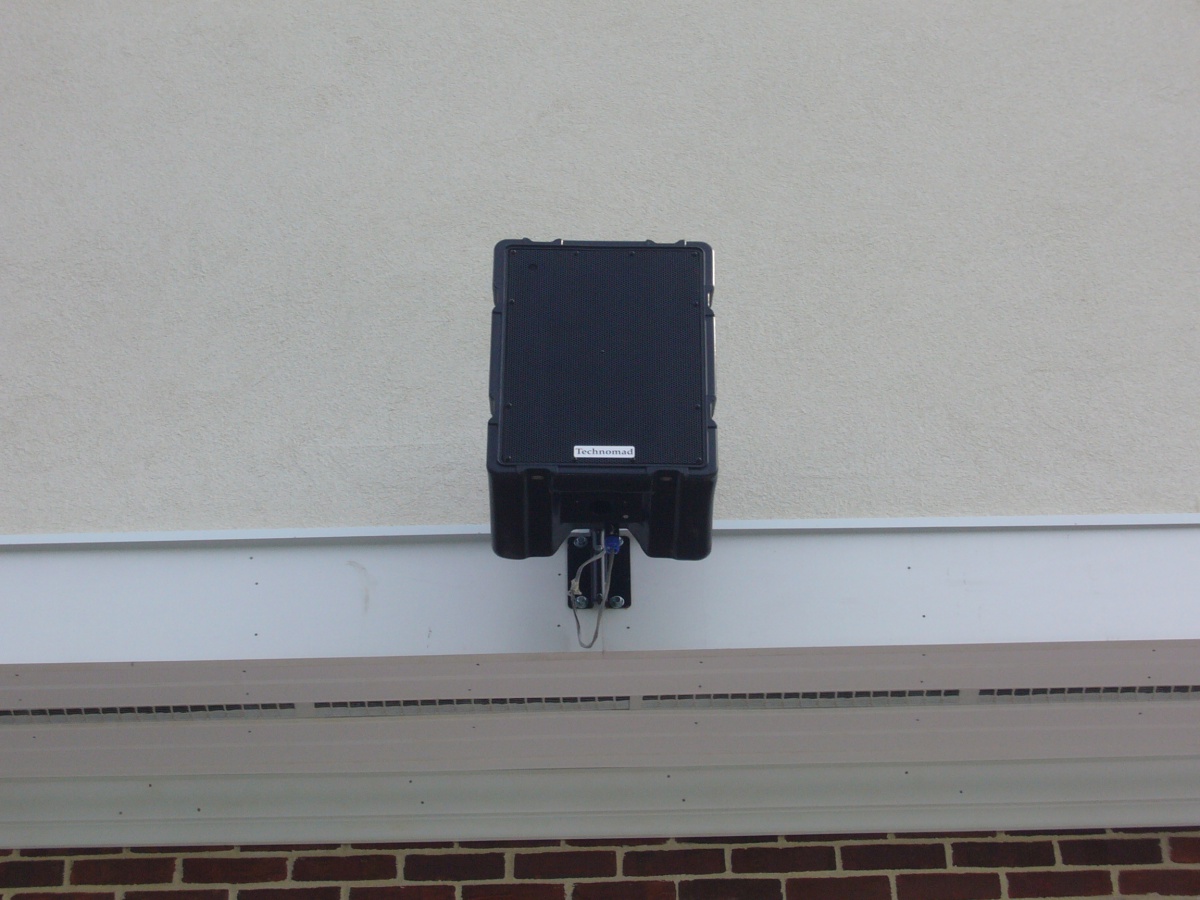

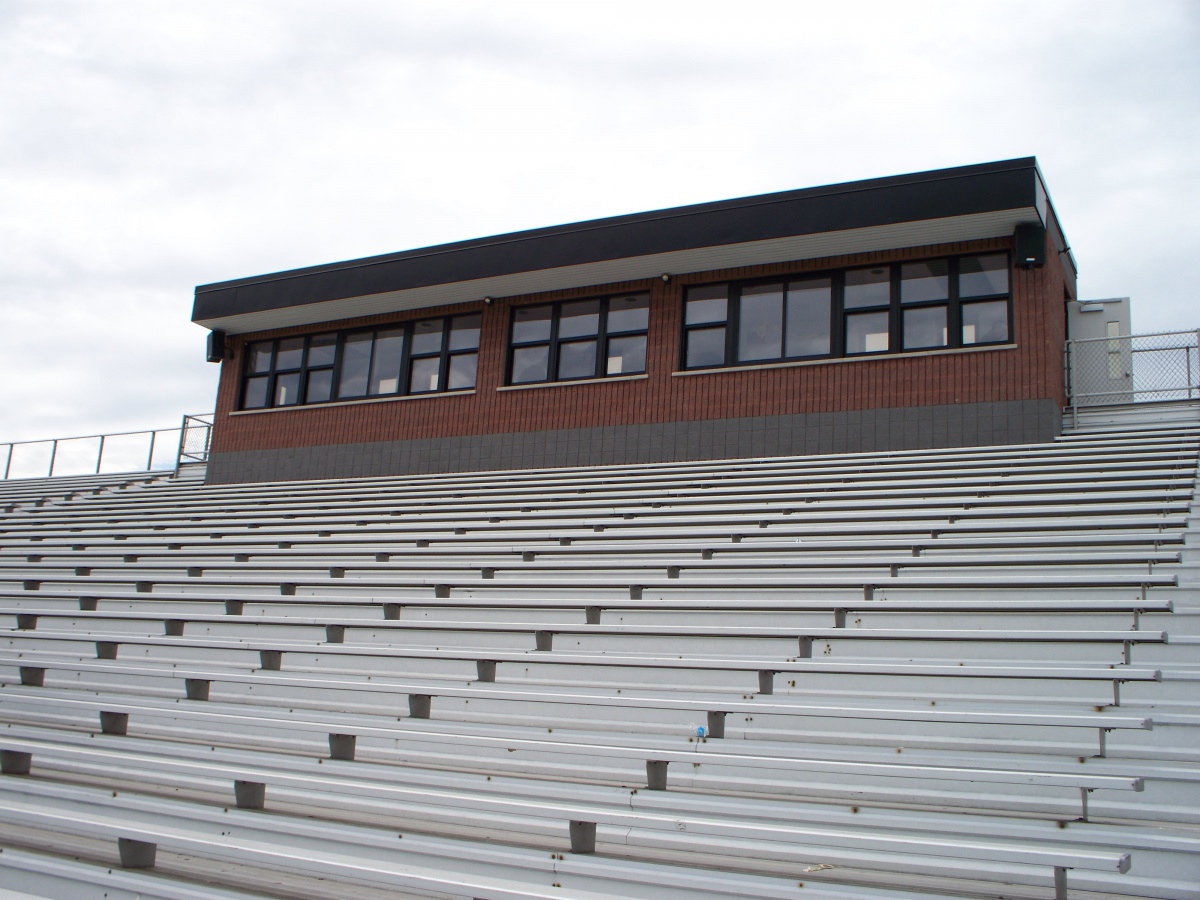

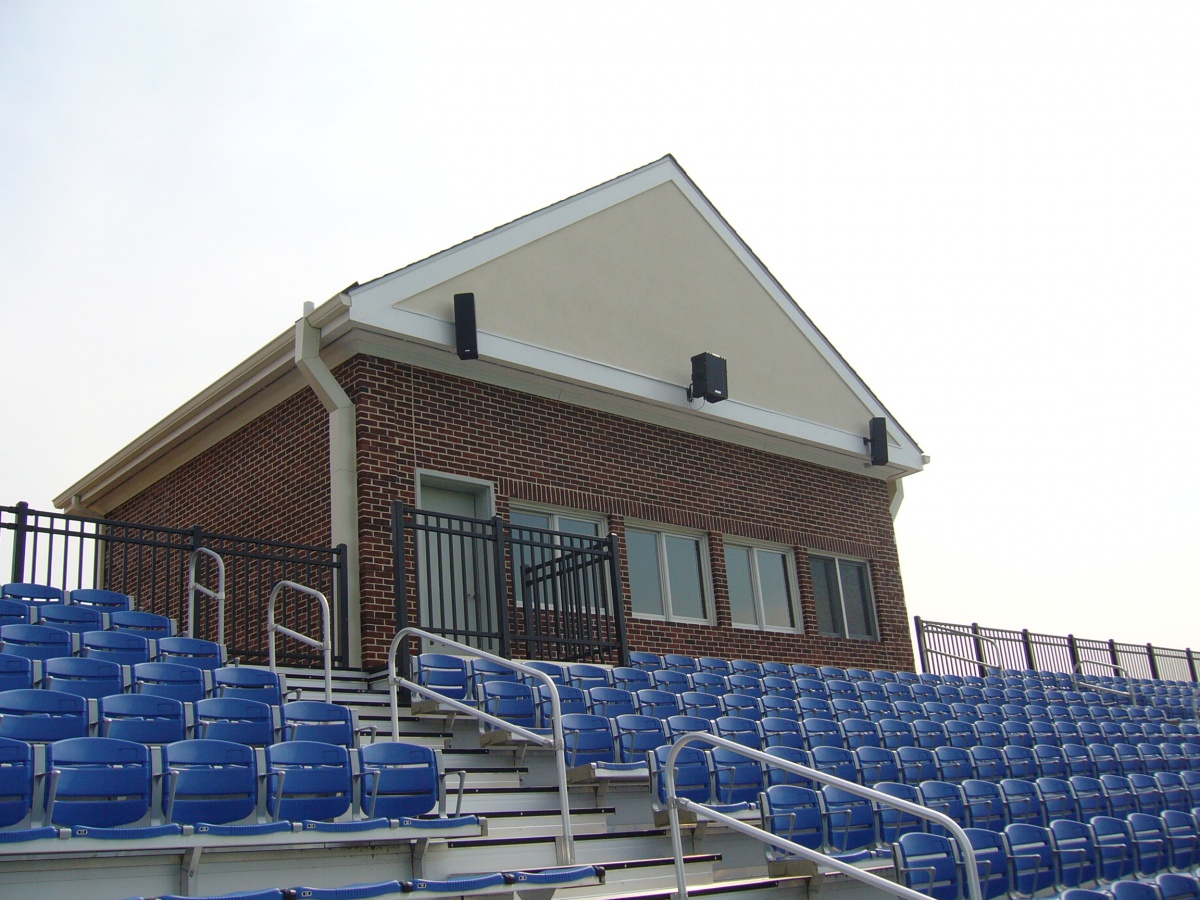

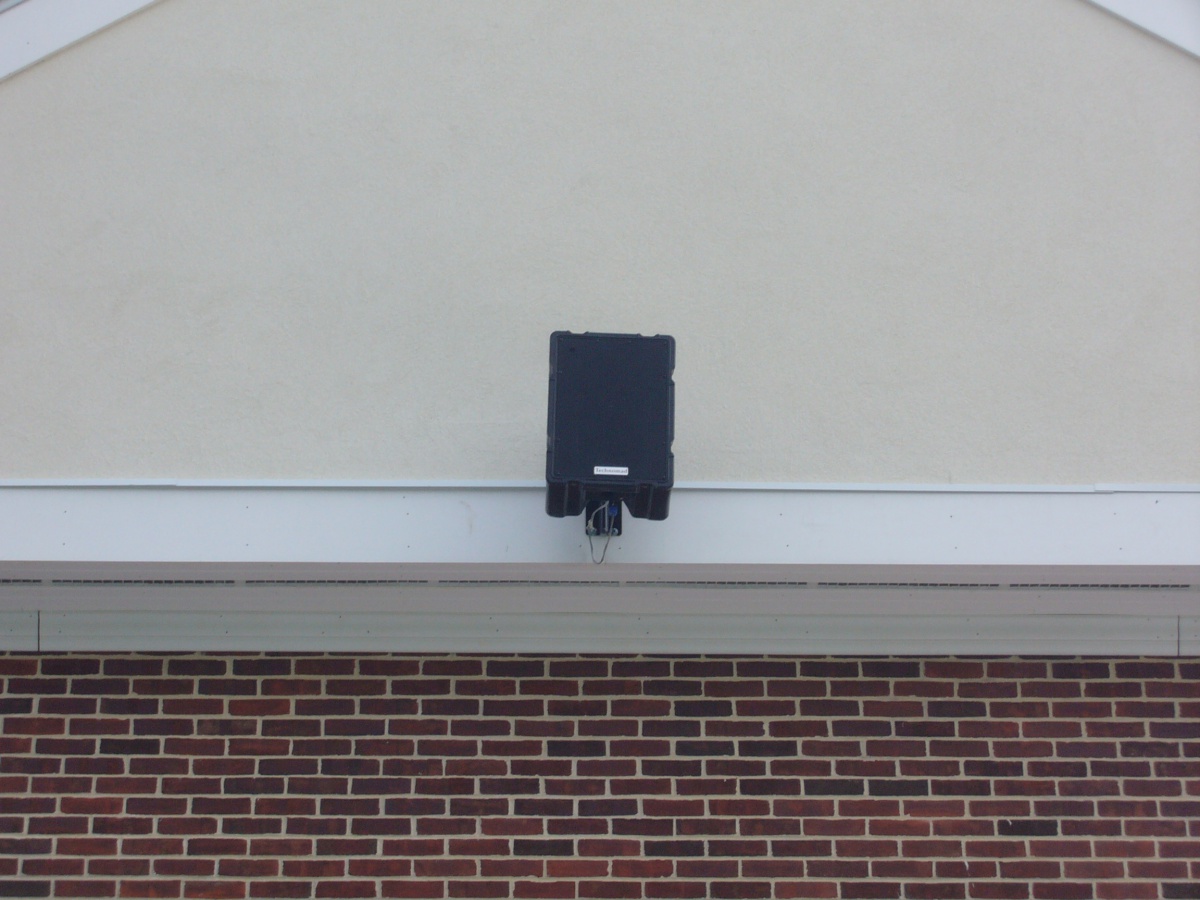

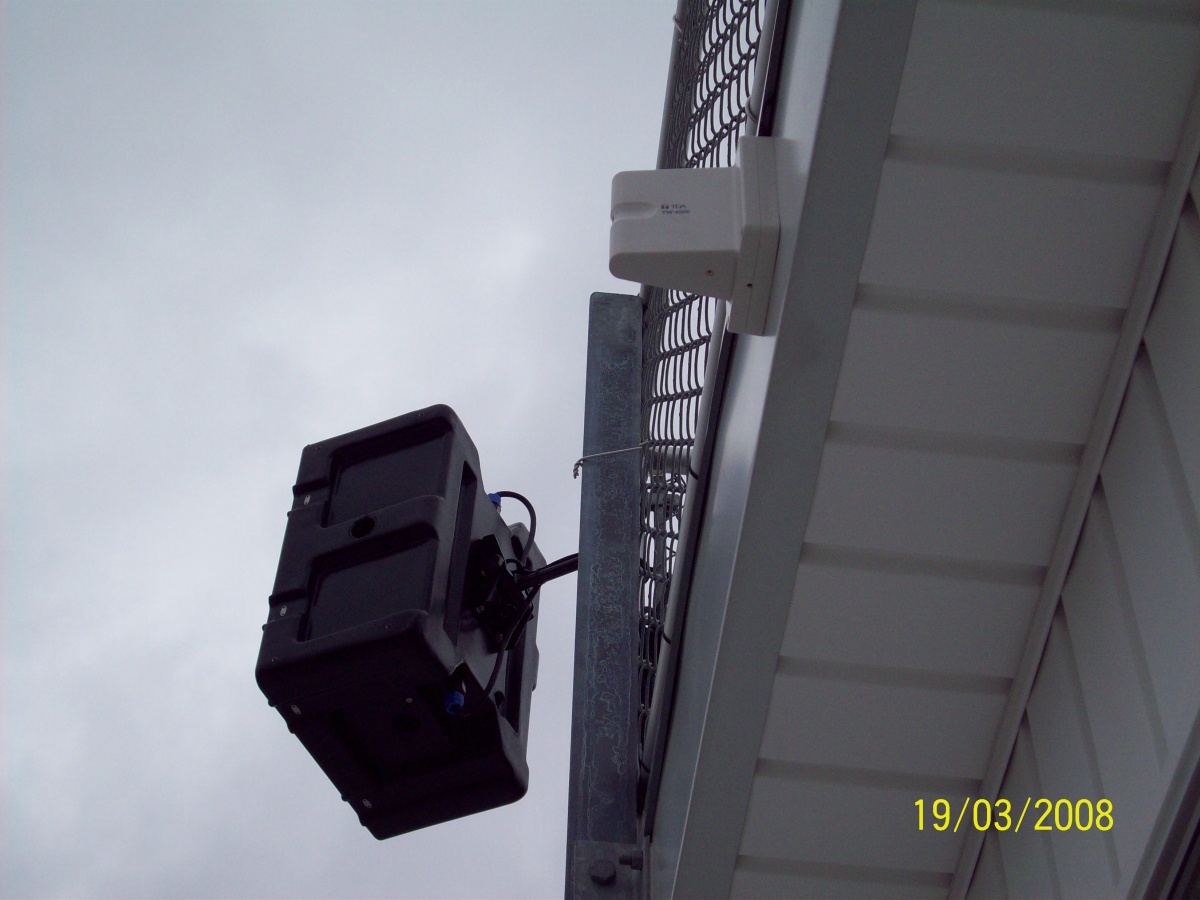

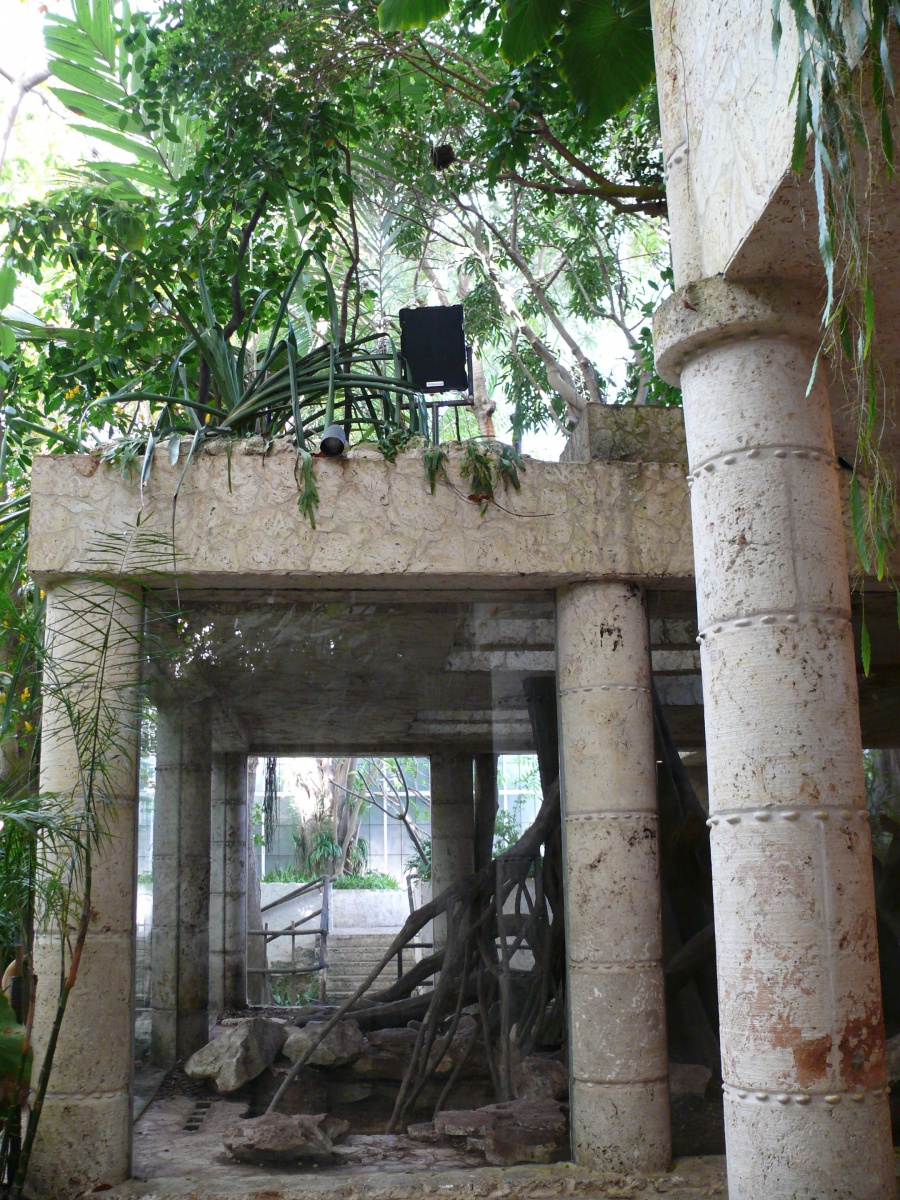

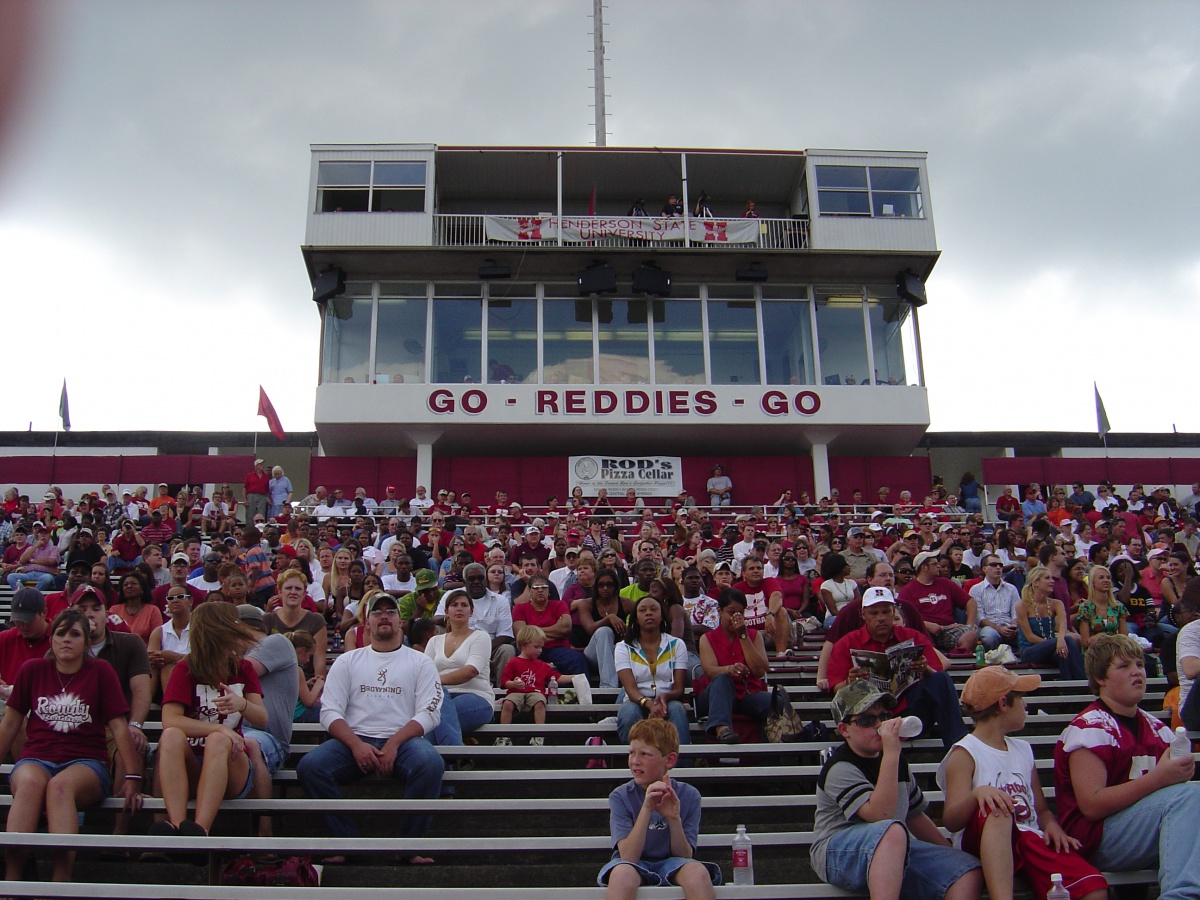

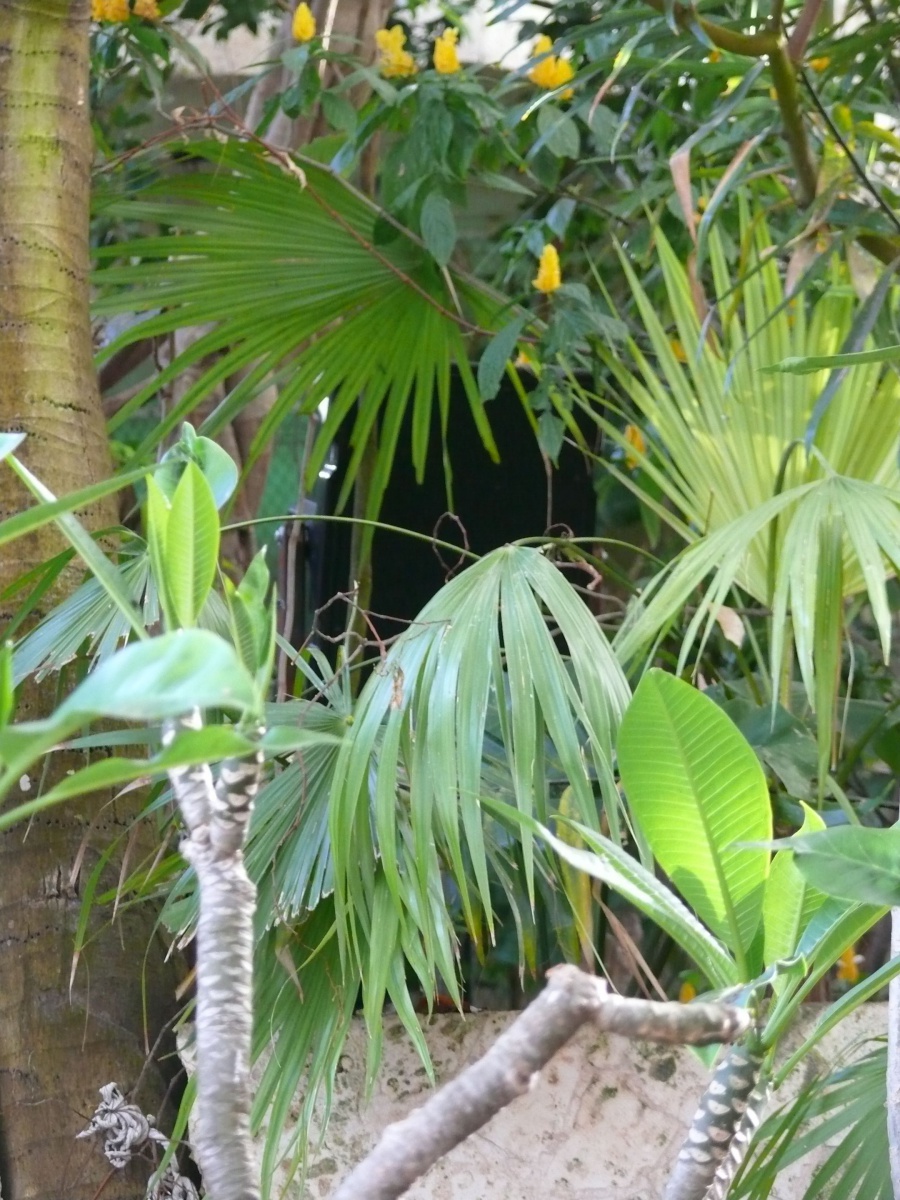

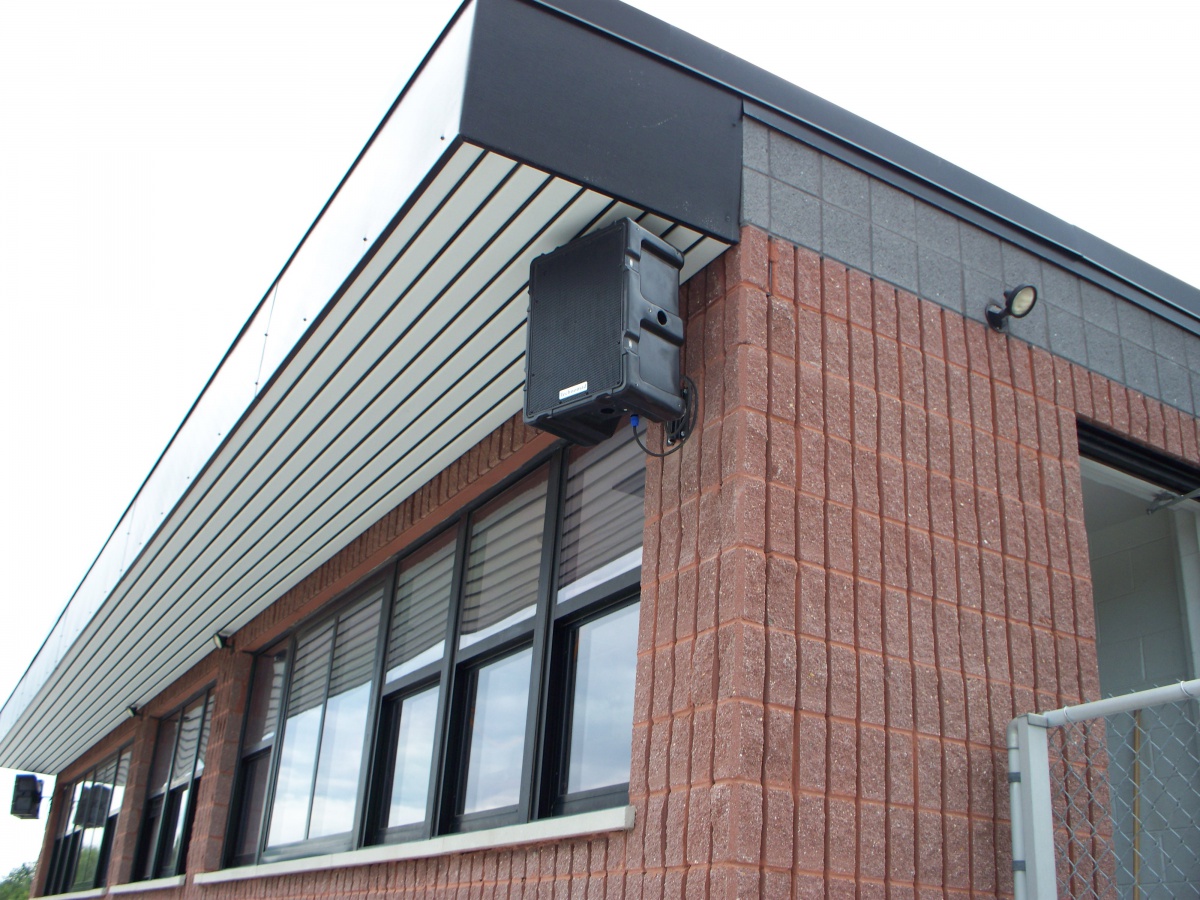

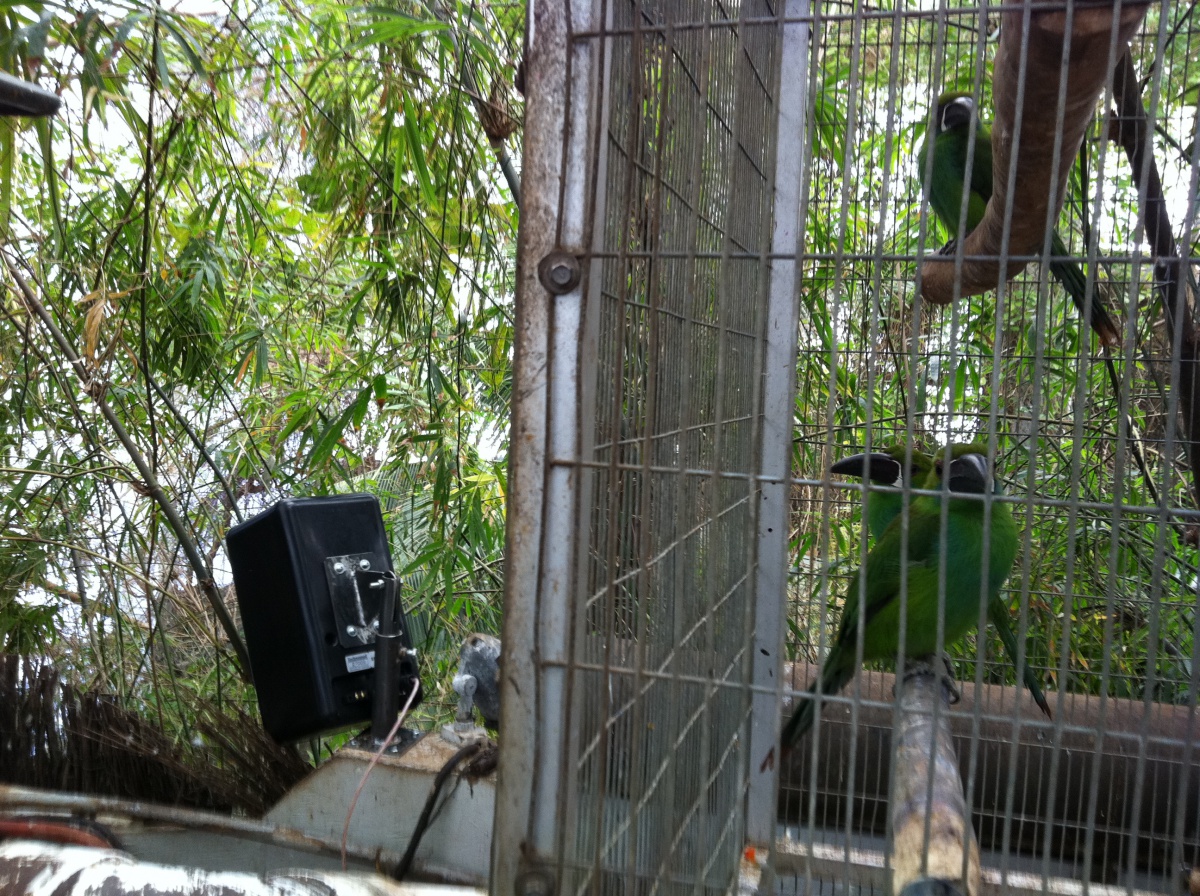

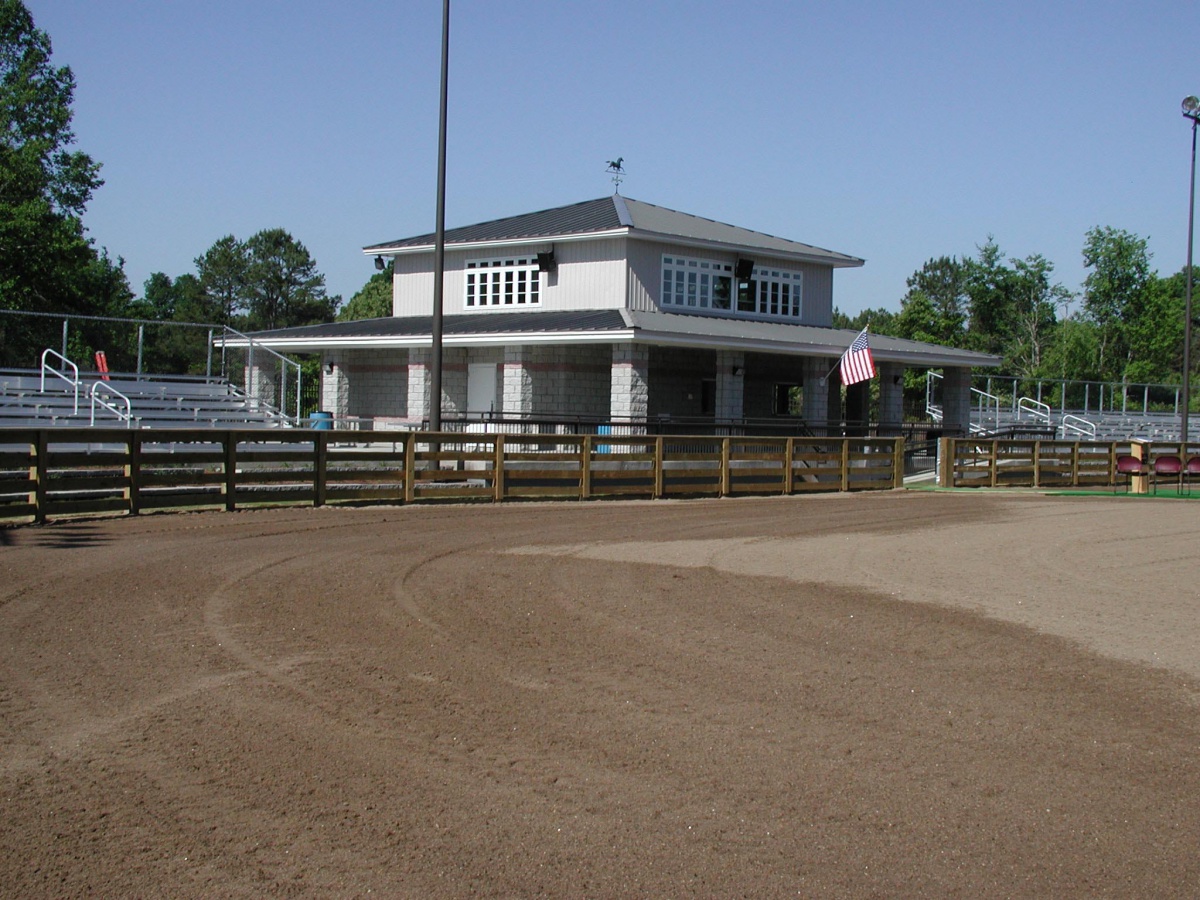

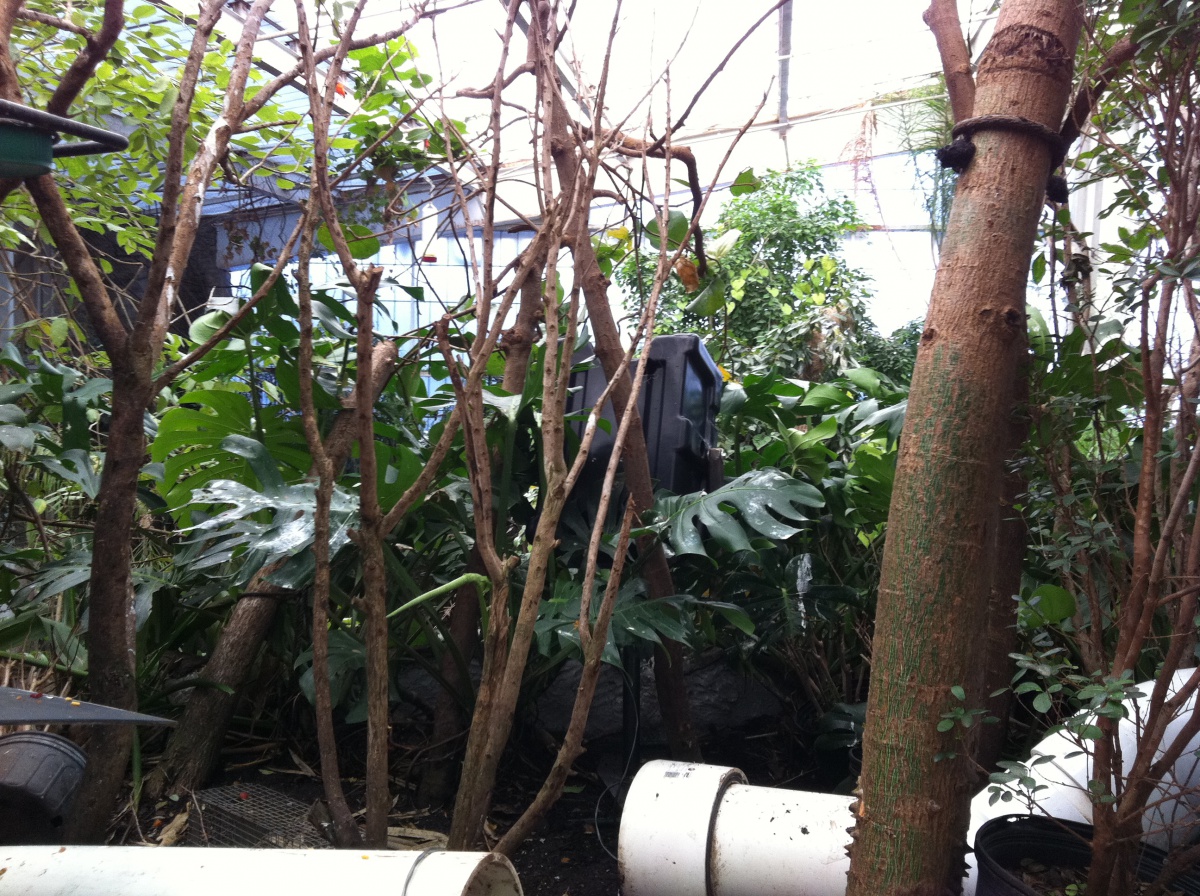

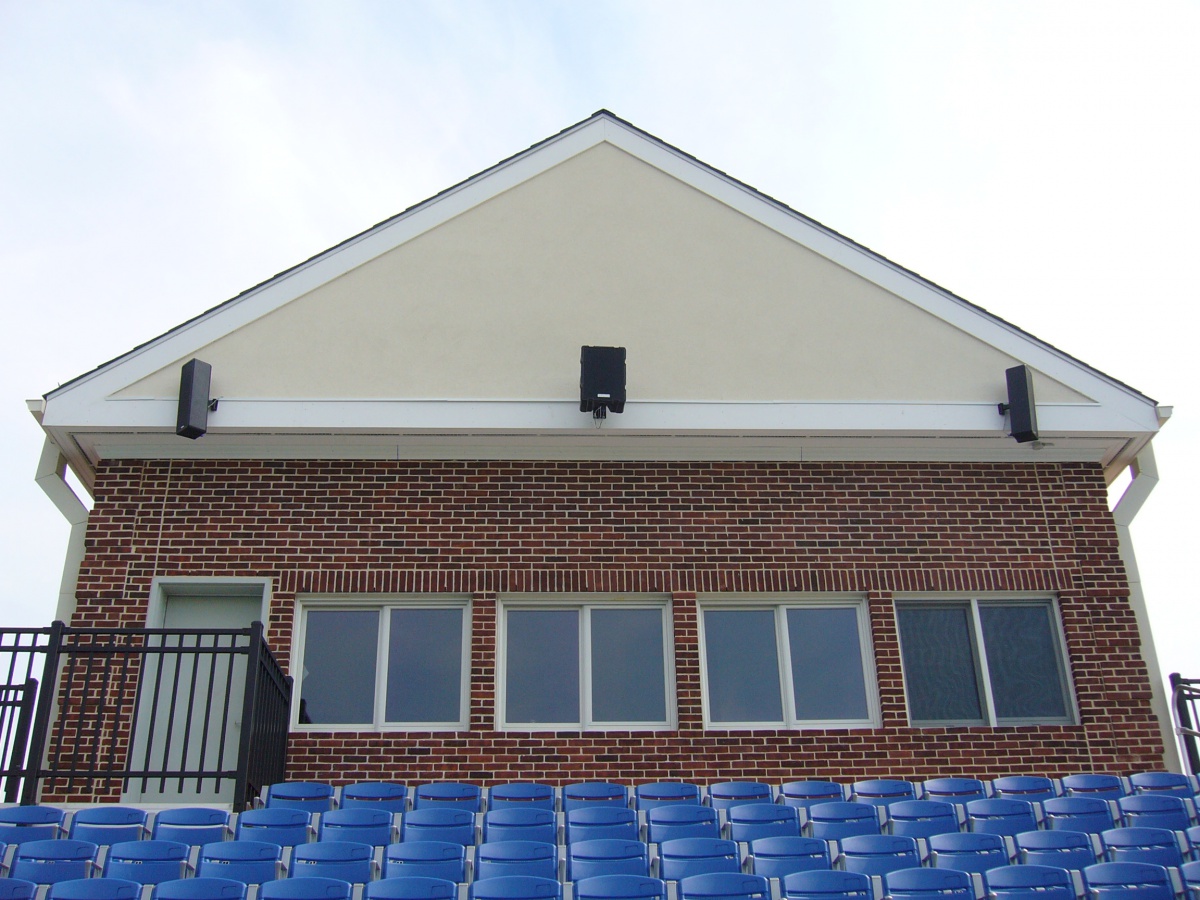

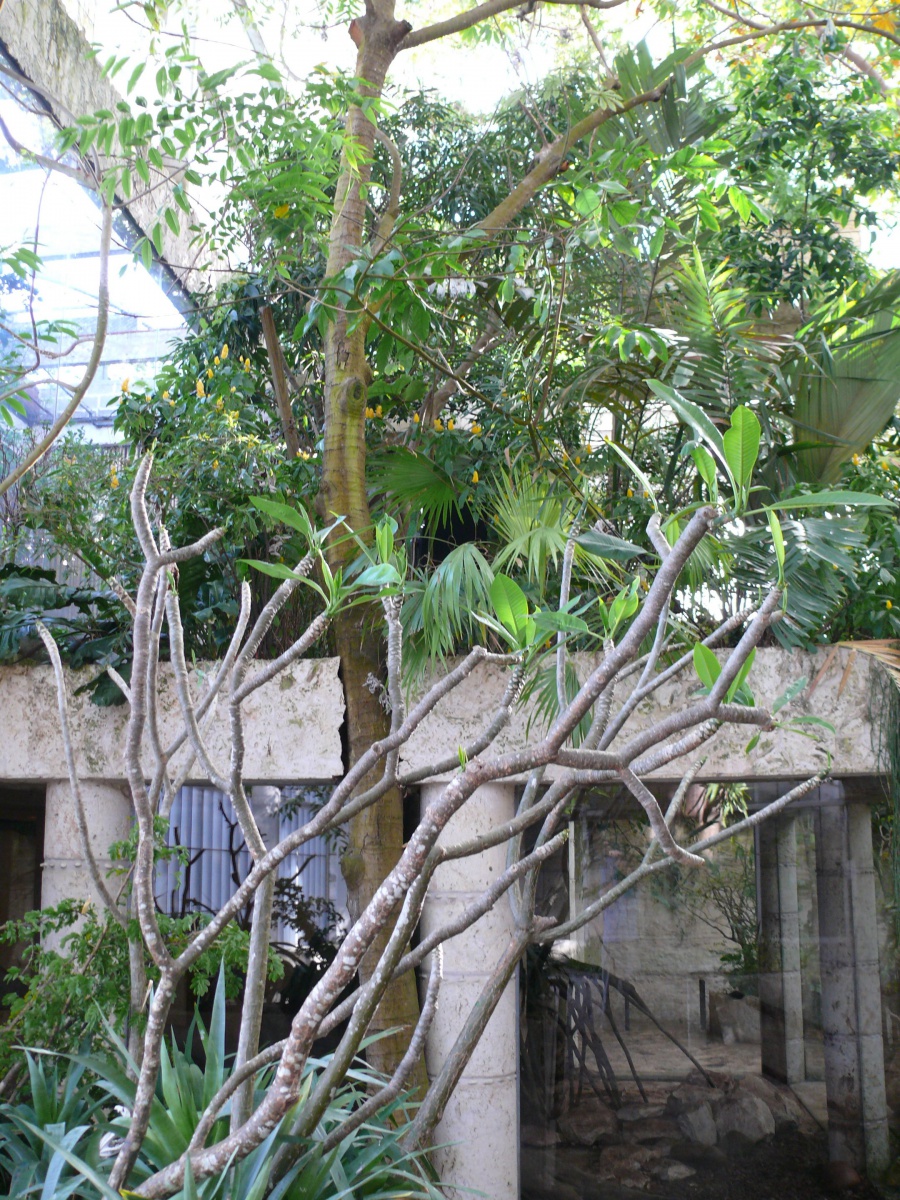

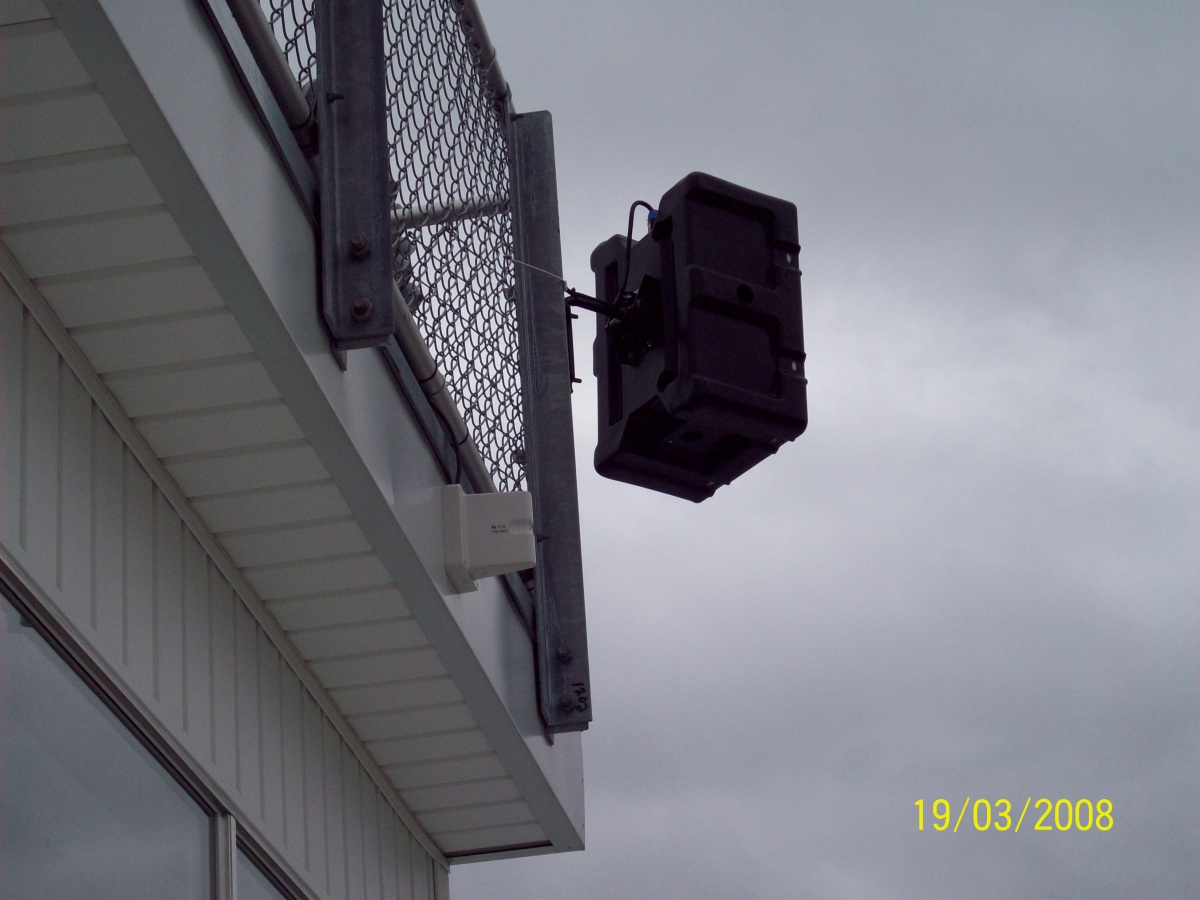

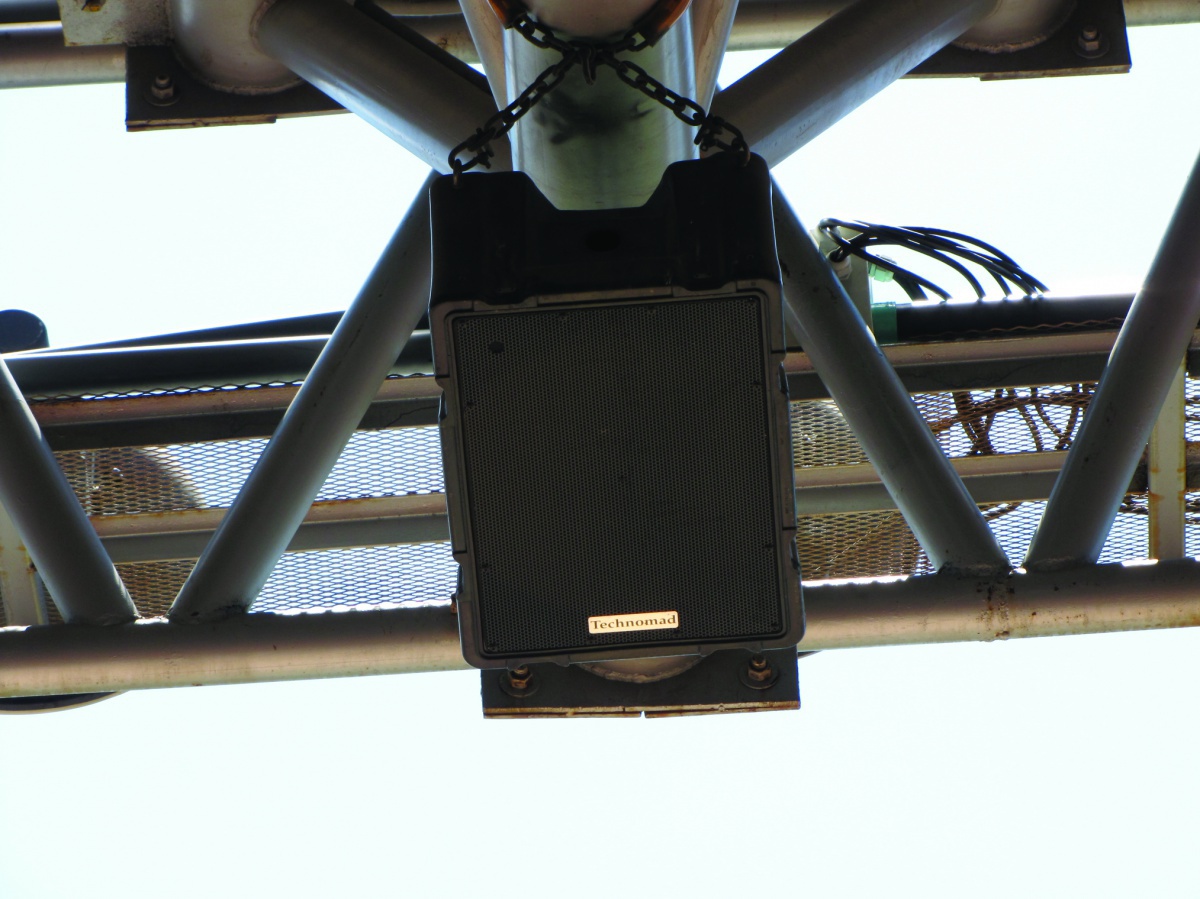

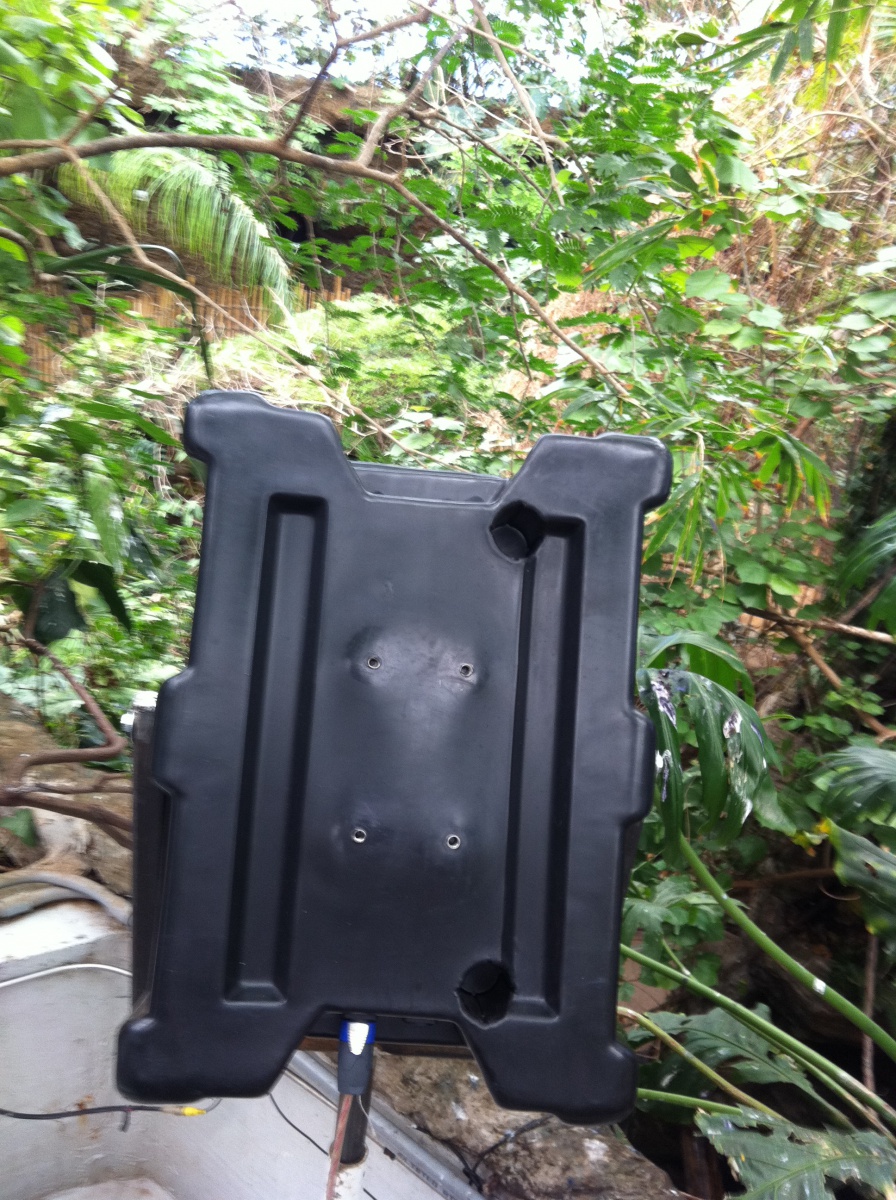

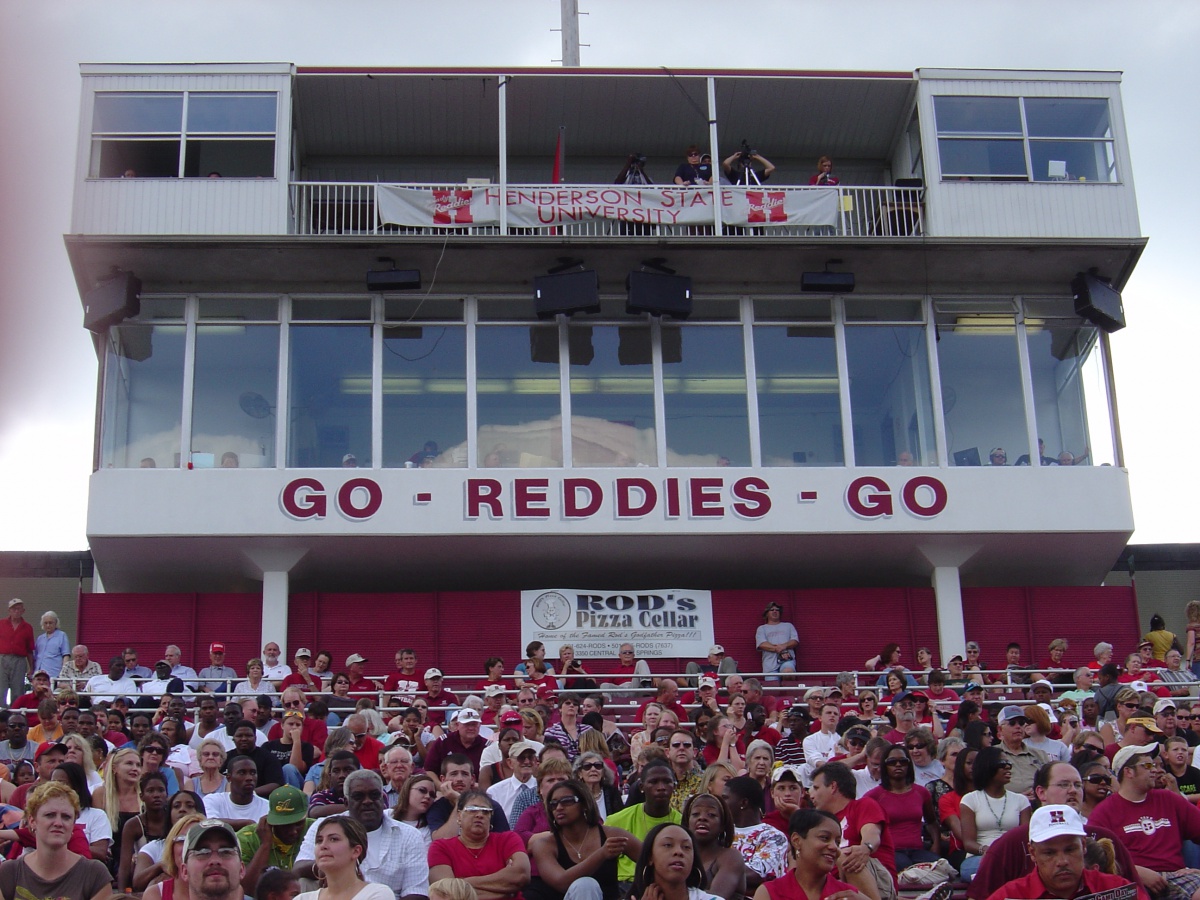

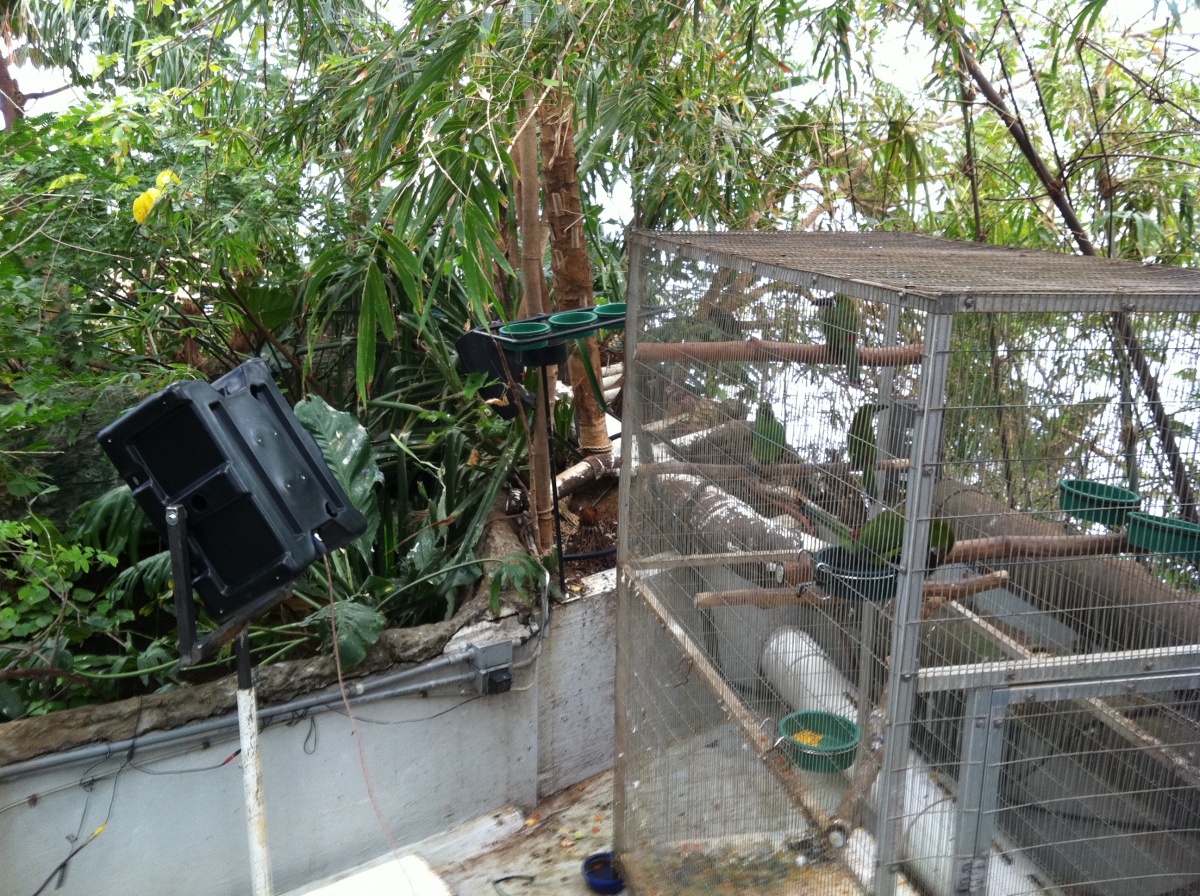

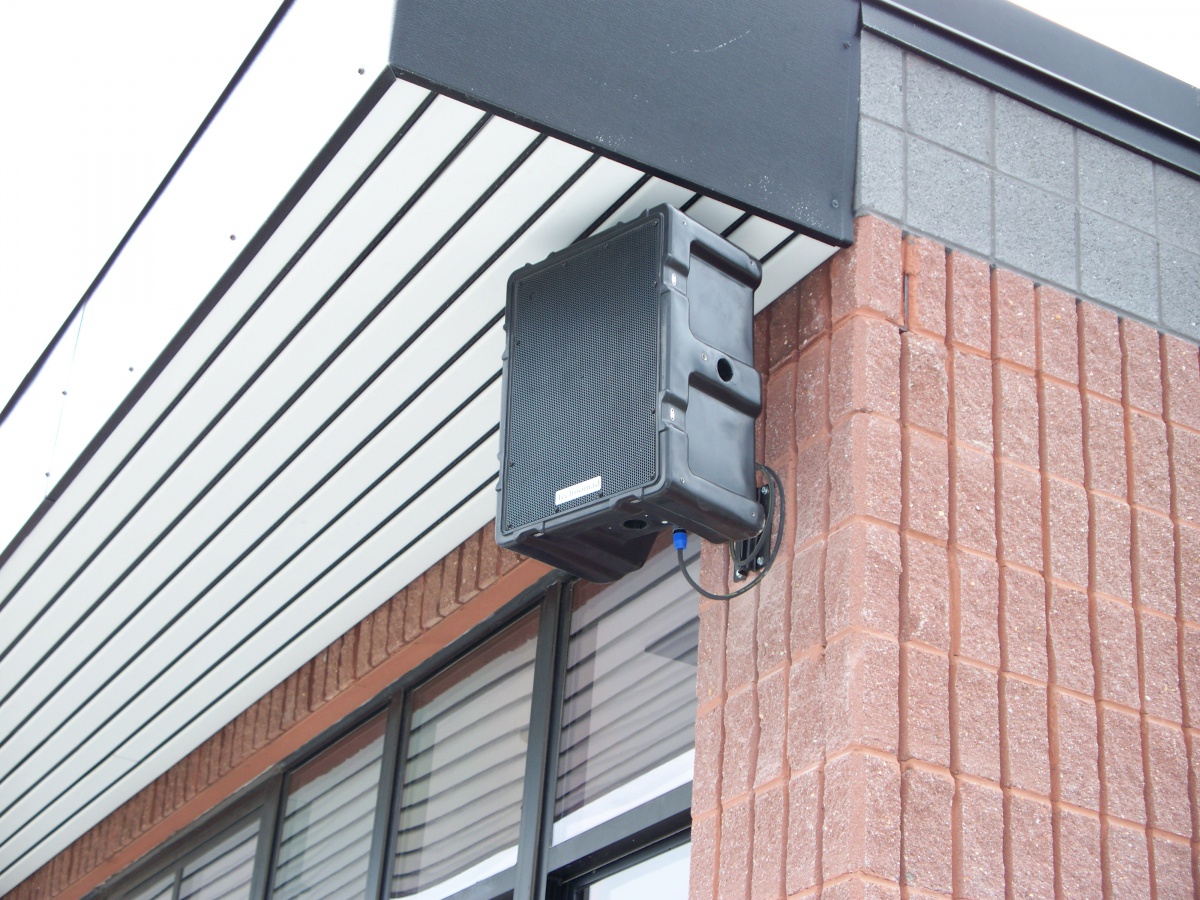

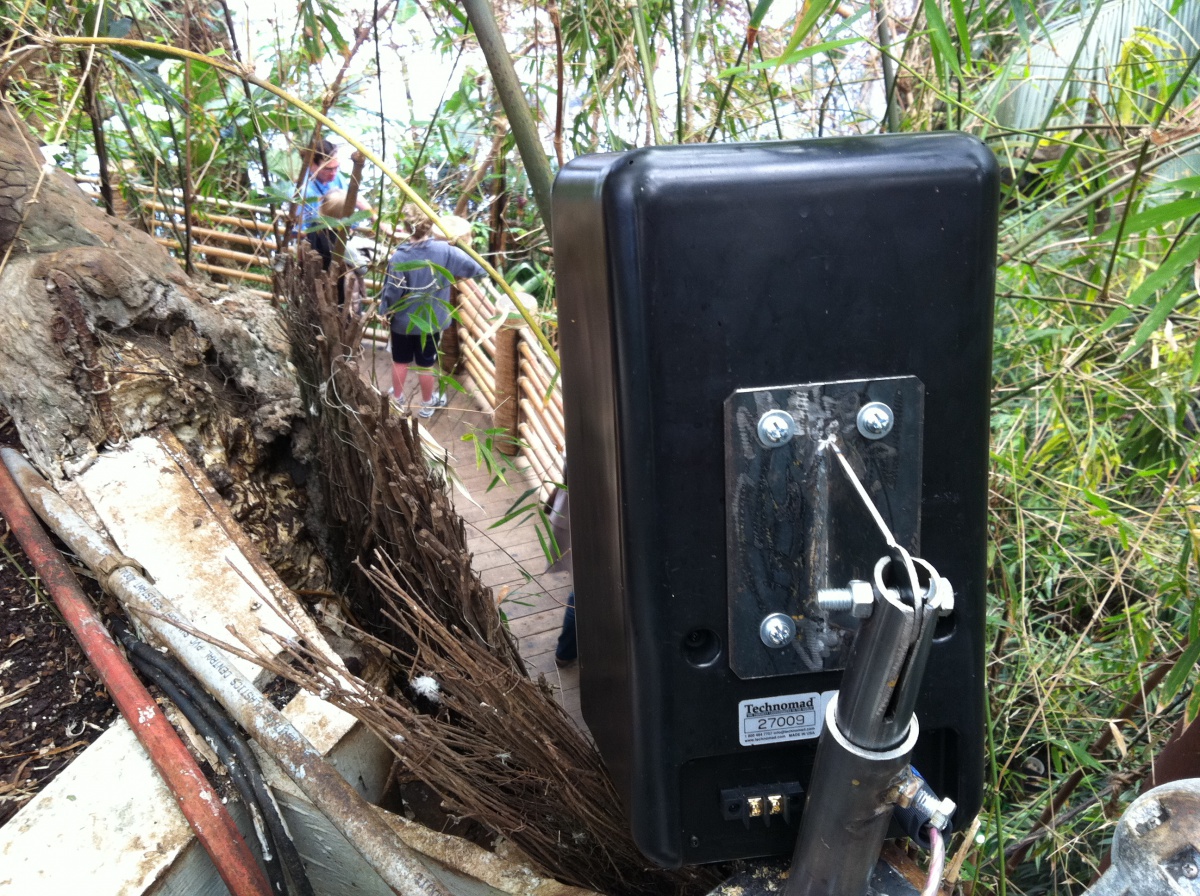

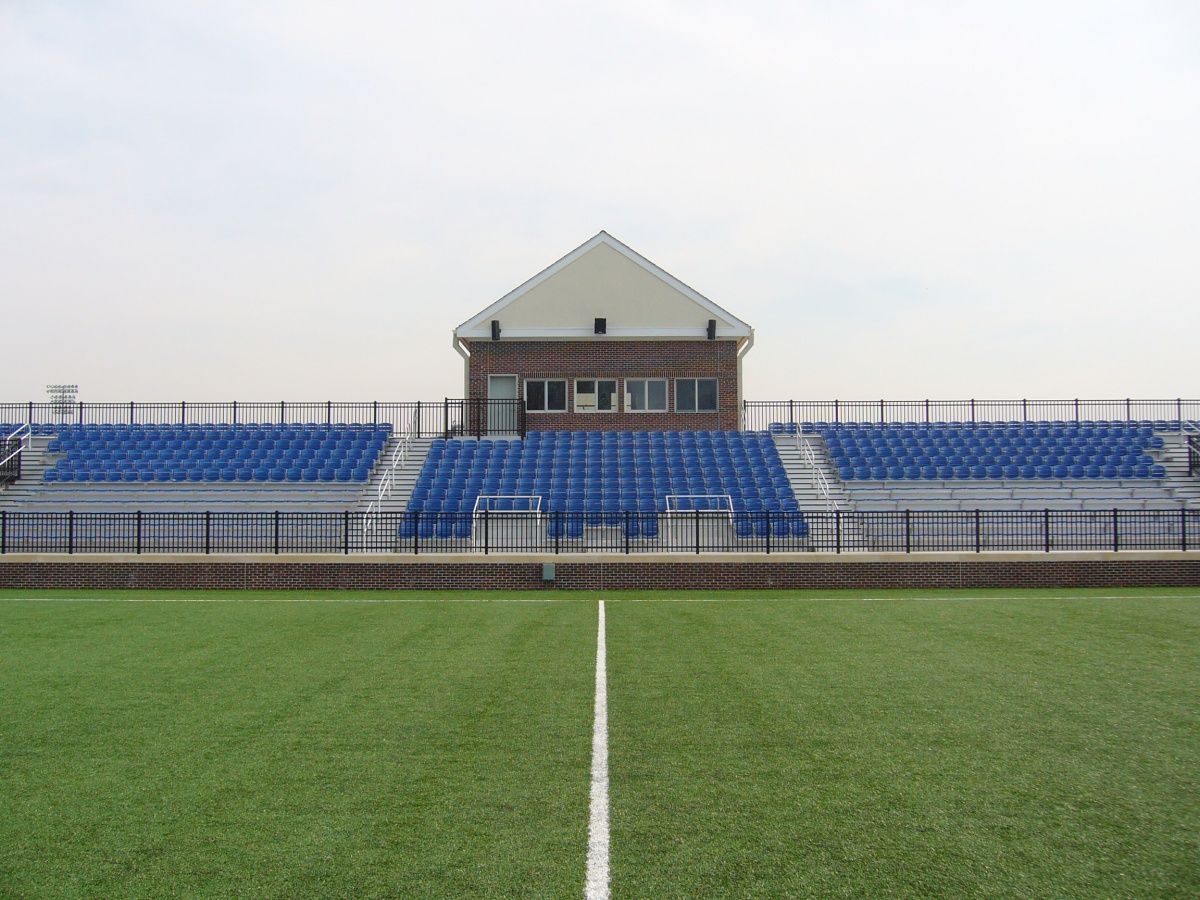

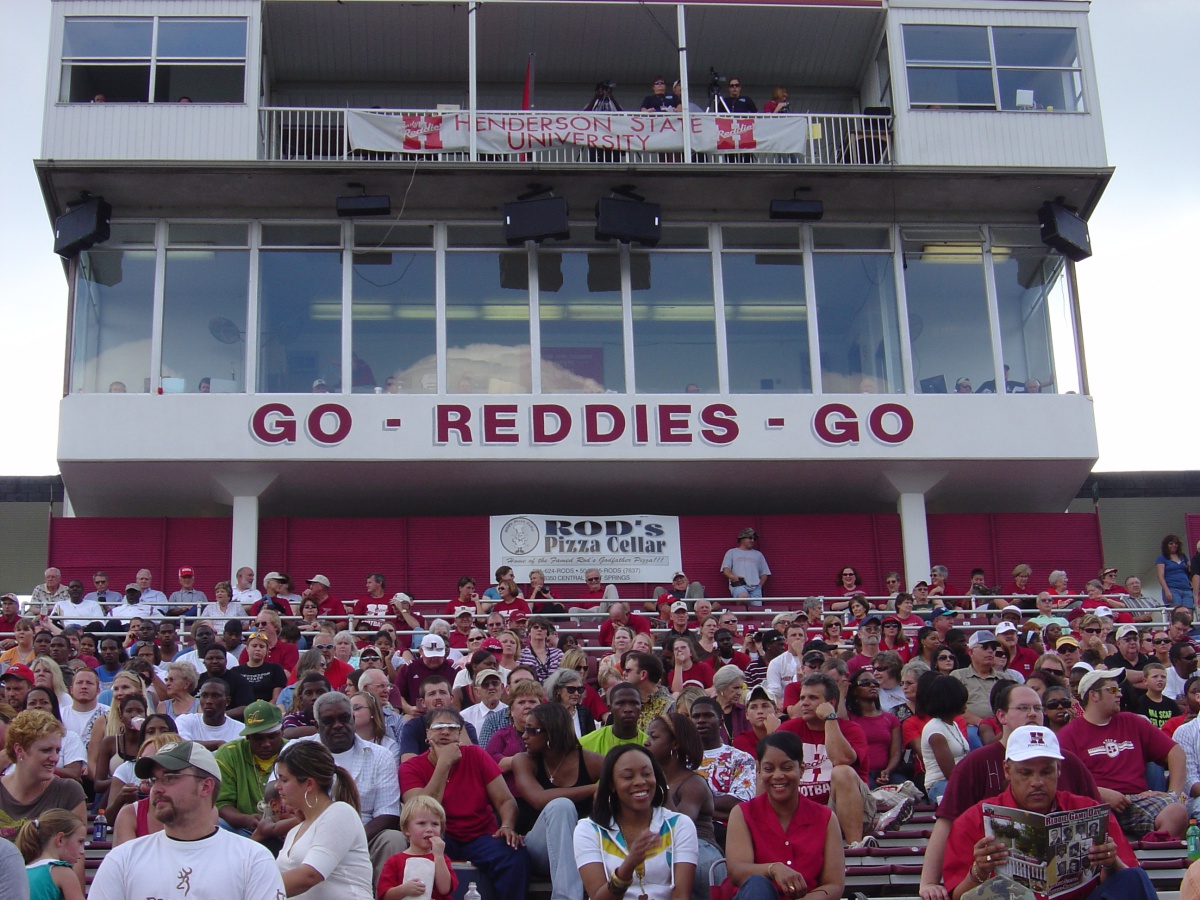

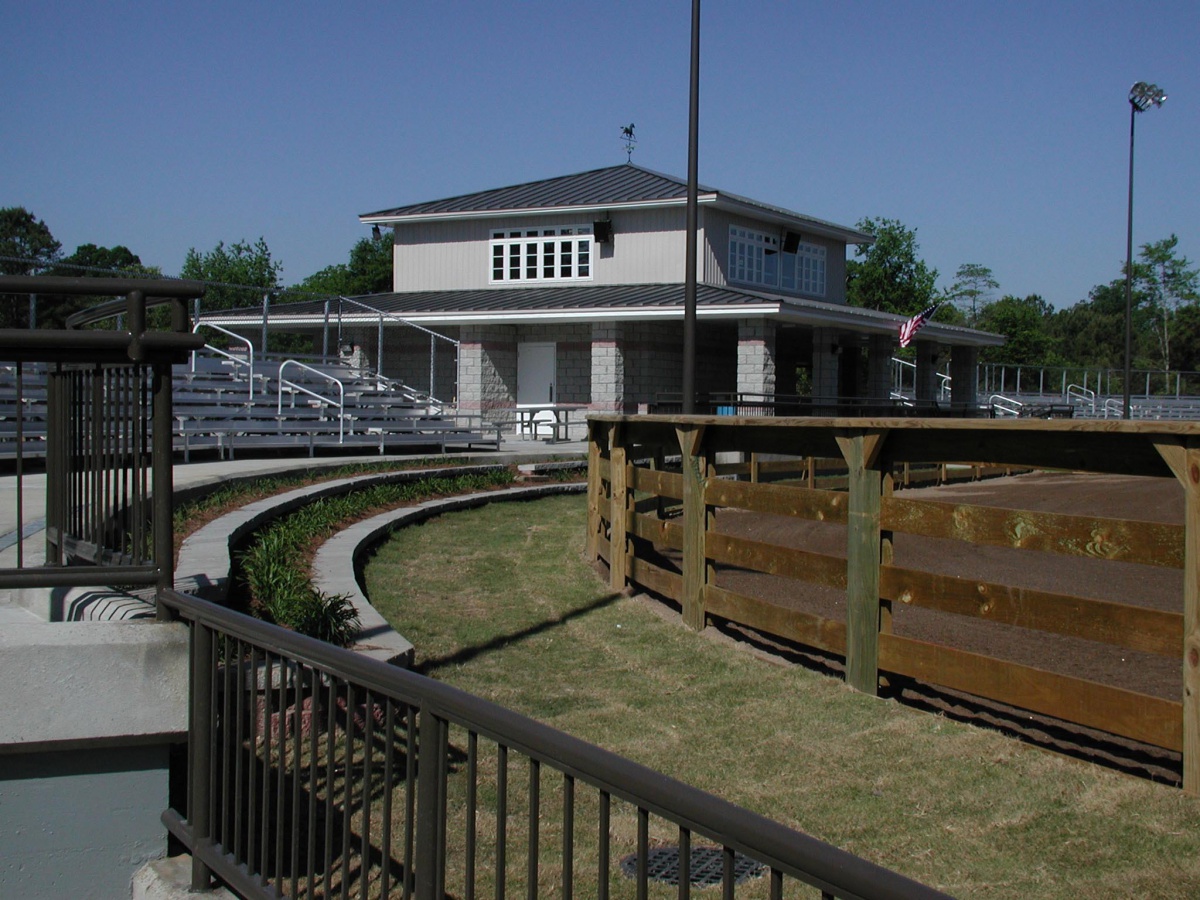

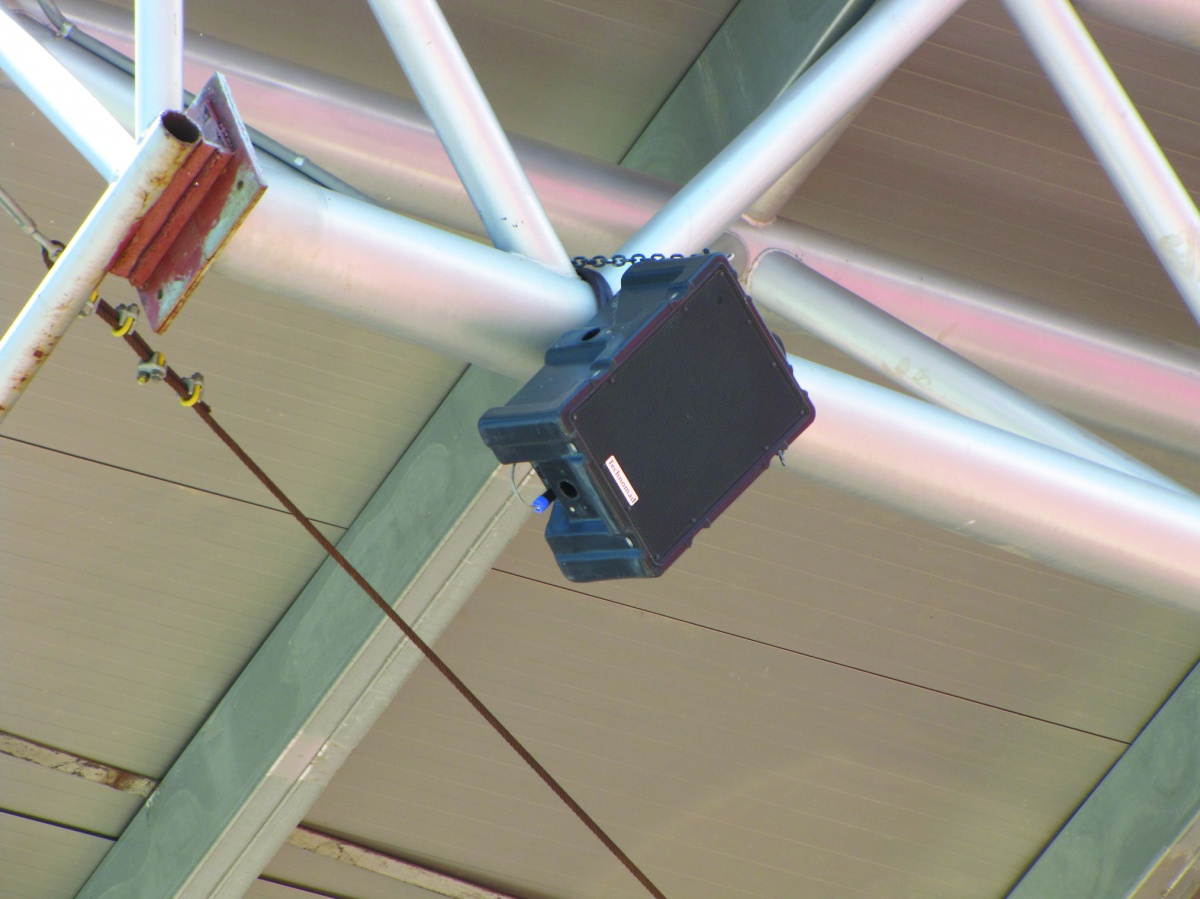

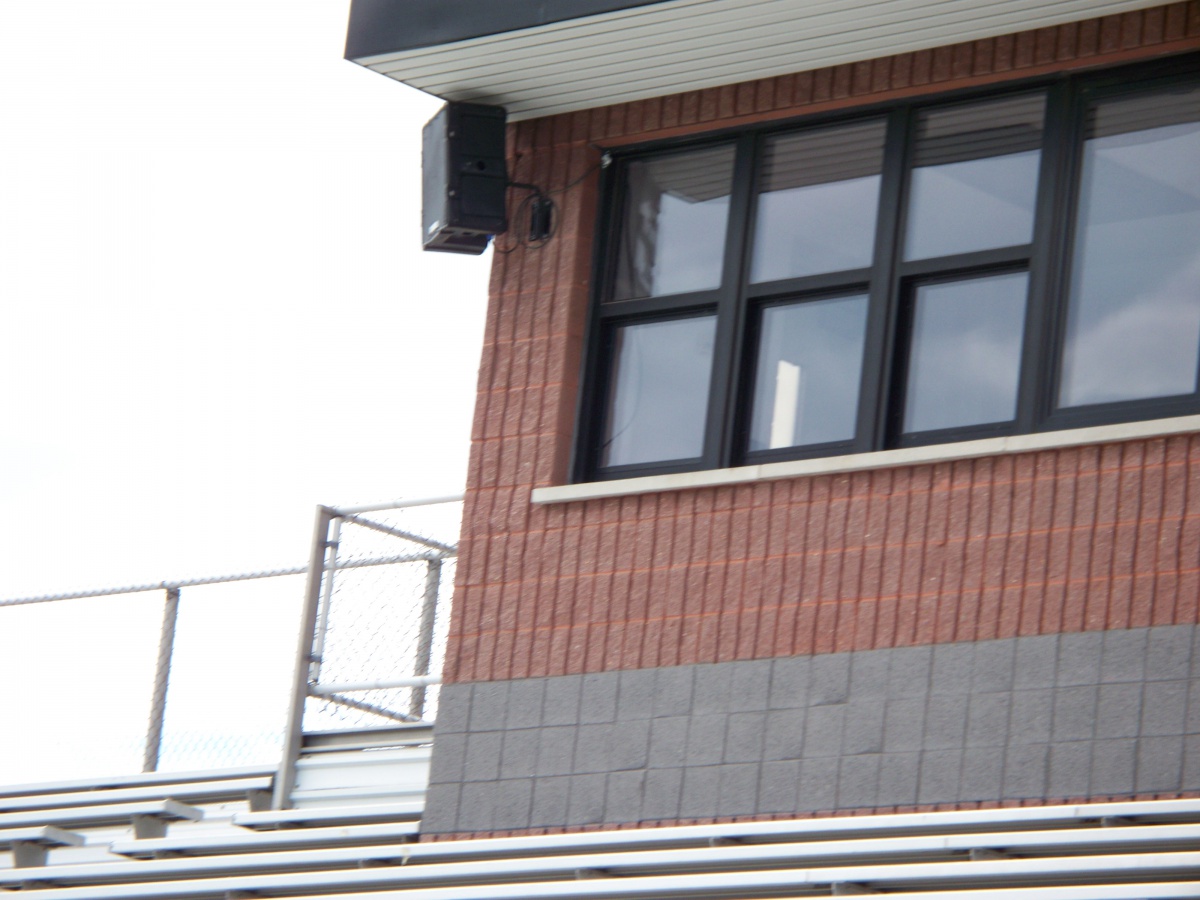

Additional Photos
