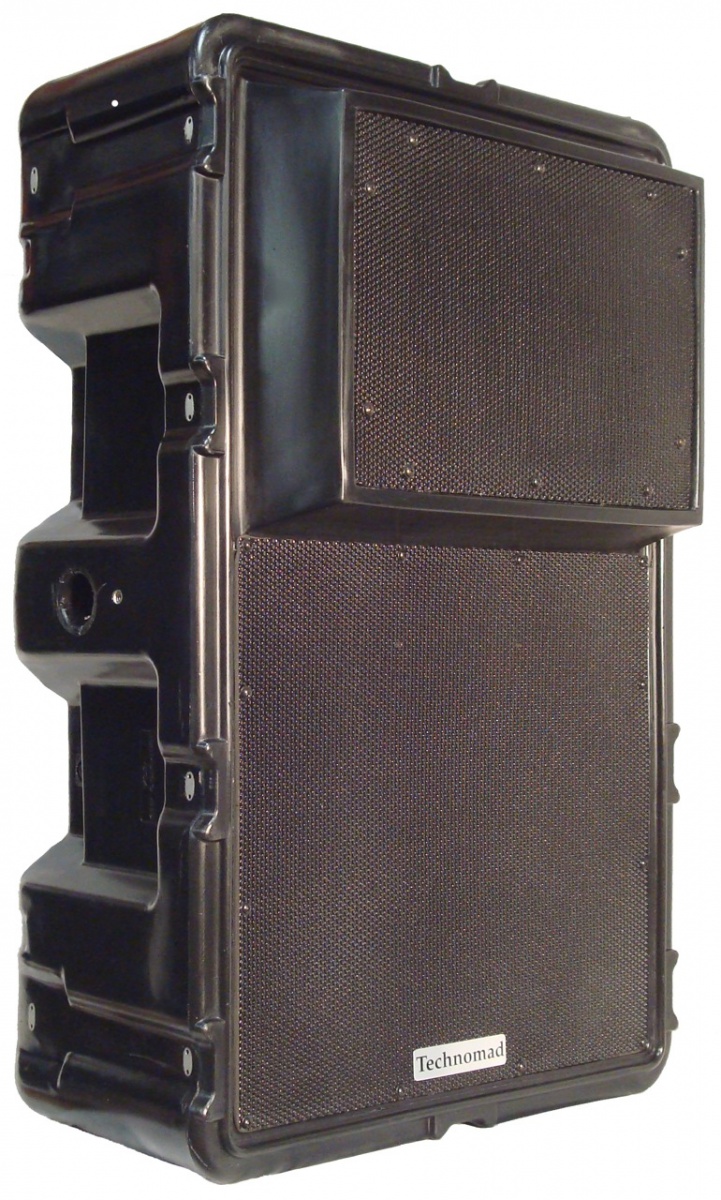

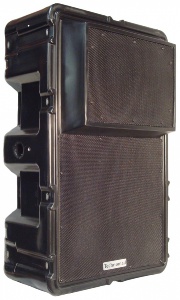

The Berlin HighQ – 60/40 and 90/40

Powerful, IP56 Weatherproof, 2-Way Full-range Loudspeaker, with two narrow dispersion patterns. Ideal for applications requiring constant-directivity coverage.Read Press Release.

“…We put it (the Berlin 6040) through its paces on a large stadium and it was awesome. It was far and away clearer quality sound than the Community R2 loudspeakers and it was as powerful and as good of coverage as two of the Communities. I will definitely recommend the Berlin HQ for our stadium jobs”. – Lloyd Duckworth / ELECTROCOM, WA

[ See Wide-Beam Berlin 15/H, and new matching OSLO 18 subwoofer ]

Size:	32.9″x 20.6″ x 14.2″
Weight:	90 lbs
Dispersion	Two Models: 60 x 40 degrees (Berlin 6040) 90 x 40 degrees (Berlin 9040)* Special Order, Long Lead Times!
Freq. Response:	50 Hz – 18 KHz (+/- 2 dB)
Sensitivity:	102 dB SPL (1W/1M, swept sine)
Continuous Power:	500 Watts (based on EIA test 426B)
Impedance:	8 Ohms (nominal)
Connector:	2 x Speak-On
HF Driver:	2″ horn-loaded compression driver
LF Driver:	15″ custom cone driver
Option	»14 Available Colors (black standard) »Tour Package (gasketed lid, handles for transport) »Wallmount \| Pole Mount Bracket »Yoke Mount »Monitor Tilt Kit(for floor / ‘wedge’ monitor operation) »300-Watt internal 70-volt transformer »PowerChiton outdoor amplifier

Additional Photos
